  11. Walter - Insert Walter Cut Form GX

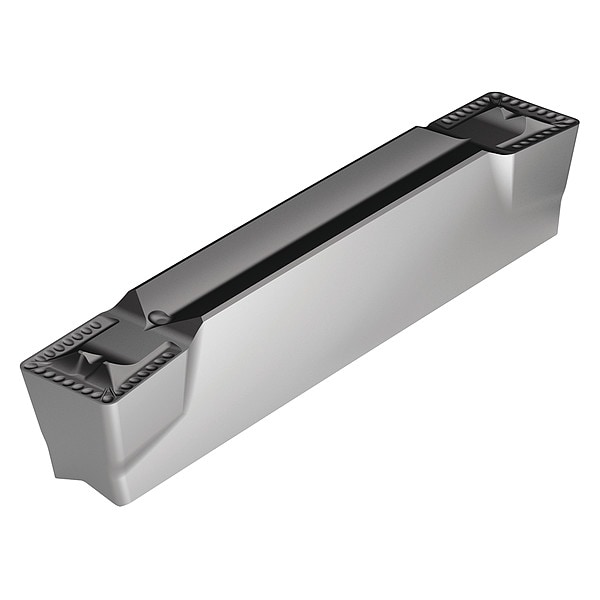

Walter Walter - Insert Walter Cut Form GX GX24-3E400N08-UD4 - main

Walter - Insert Walter Cut Form GX

  • Mfr # GX24-3E400N08-UD4

  • Zoro # G9381391

product price: $37.59
/ea
Sold in multiples of 10 for $375.90

Key Features

Style
GX24
Width
4.00mm
Chip-Breaker
Yes
Grade
WKP23S
Cutting Direction
Neutral
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GX24-3E400N08-UD4
Zoro #
G9381391
UPC #
-
Country of Origin
Germany

Dimensions

Width
4.00mm
Corner Radius
0.80mm
Insert Size
24
Overall Length
24.00mm
Seat Size
E
Reference Length
24.00mm
Depth of Cut
22.00mm
Max. Grooving Width
4.00mm

Details

Item
Parting and Grooving Insert
Style
GX24
Chip-Breaker
Yes
Grade
WKP23S
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Steel (P)
Insert Material
Carbide
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
ANSI Number
GX24-3E400N08-UD4
ISO Number
GX24-3E400N08-UD4 WKP23S
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
No
For Use With
GX Grooving Systems
Lead Angle
0 Degrees
Application
Grooving, Parting Off, Recessing, Axial, Internal Grooving
Non Ferrous (N) Compatibility
No
Coating
Tiger-Tec CVD
Cast Iron (K) Compatibility
Yes
No. of Edges
2
Mounting Style
Clamp
Insert Style
GX
Measurement System
Metric
Number of Cutting Edges
2
Material - Machining
Carbide
Primary Material Application ISO Code
K, P
ANSI Code
GX24-3E400N08-UD4 WKP23S
Coating Process
CVD
Insert Holding Type
Clamp
Manufacturer Grade
WKP23S
Chip-Breaker Code
UD4
Hole Type
No Hole
Primary Material Application
Cast Iron, Steel
Cutting Application
Axial Grooving, Cut-Off, Facing, Longitudinal Turning, Radial Grooving
Number of Cutting Sides
2
Cutting Location
External

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 4.00mm, ANSI Code GX24-3E400N08-UD4 WKP23S, Chip-Breaker Code UD4, Coating Process CVD
