  11. Walter - Insert Walter Cut Form GX

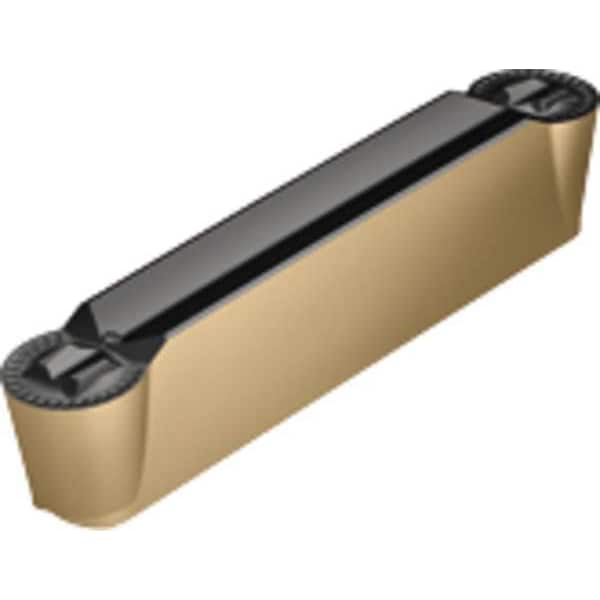

Walter Walter - Insert Walter Cut Form GX GX24-4E635N32-RD4 WSM33S - main

Walter - Insert Walter Cut Form GX

  • Mfr # GX24-4E635N32-RD4 WSM33S

  • Zoro # G9687632

product price: $42.79
/ea
Sold in multiples of 10 for $427.90

Key Features

Style
Pressed
Insert Seat Size
E
Width
1/4 in
Chip-Breaker
Yes
Grade
WSM33S
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GX24-4E635N32-RD4 WSM33S
Zoro #
G9687632
UPC #
-
Country of Origin
Germany

Dimensions

Insert Seat Size
E
Width
1/4 in
Corner Radius
1/8 in
Overall Length
0.9450 in
Insert Size
24
Depth of Cut
0.8660 in
Reference Length
0.9450 in
Max. Grooving Width
1/4 in
Seat Size
E

Details

Item
Parting and Grooving Insert
Style
Pressed
Chip-Breaker
Yes
Grade
WSM33S
Cutting Direction
Neutral
Workpiece Compatibility
Stainless (M), Steel (P), Super Alloy (S)
Insert Material
Carbide
Hardened (H) Compatibility
No
For Use With
Walter Cut Monoblock Tools and Parting Blades
Lead Angle
0 Degrees
Stainless (M) Compatibility
Yes
Mounting Style
Slip In
Super Alloy (S) Compatibility
Yes
Cast Iron (K) Compatibility
No
Application
Full Radius, Grooving, Facing, Medium Feed
ANSI Number
GX24-4E635N32-RD4 WSM33S
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
No. of Edges
2
ISO Number
GX24-4E635N32-RD4 WSM33S
Coating
PVD
Rake
7 Degrees
Insert Style
GX
ANSI Code
GX24-4E635N32-RD4 WSM33S
Coating Process
PVD
Material - Machining
Carbide
Number of Cutting Edges
2
Primary Material Application ISO Code
M, P, S
Hole Type
No Hole
Finish - Machining
TiAlN
Cutting Application
Axial Grooving, Facing, Longitudinal Turning, Radial Grooving
Cutting Location
External
Measurement System
Fractional Inch
Number of Cutting Sides
2
Clearance Angle
6 Degrees
Manufacturer Grade
WSM33S
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Chip-Breaker Code
RD4

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 1/4 in, ANSI Code GX24-4E635N32-RD4 WSM33S, Chip-Breaker Code RD4, Clearance Angle 6 Degrees , Coating Process PVD
