  11. Walter Titex - Micro drill

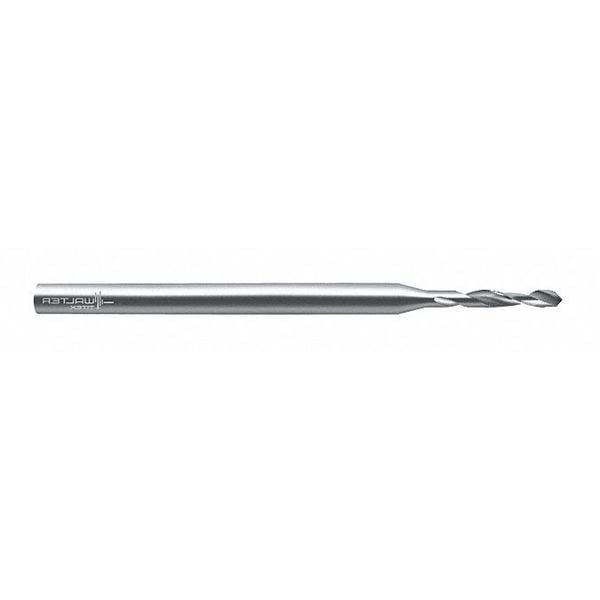

Walter Walter Titex - Micro drill A3153-0.98 - main

Walter Titex - Micro drill

  • Mfr # A3153-0.98

  • Zoro # G4828971

product price: $20.95
/ea
Sold in multiples of 10 for $209.50

Key Features

Shank Dia.
1.5 mm
Flute Length
67/250 in
Overall Length
25 mm
Number of Flutes
2
Drill Bit Point Angle
118 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A3153-0.98
Zoro #
G4828971
UPC #
-
Country of Origin
France

Dimensions

Drill Bit Size
0.98 mm
Shank Dia.
1.5 mm
Flute Length
67/250 in
Overall Length
25 mm
Depth:Dia. Ratio
5xD
Drill Bit Dimension Type
Metric
Sizes Included
0.0386"
Depth x Dia. Ratio
5xD
Drill Length Class
Micro Length
Drill Diameter Tolerance
+0.000 mm/-0.004 mm
Shank Length
18.2 mm
Maximum Drilling Depth
0.2680 in

Details

Item
Micro Drill Bit
Number of Flutes
2
Drill Bit Point Angle
118 Degrees
Cutting Direction
Left Hand
Flute Type
Spiral
Drill Bit Material
High Speed Steel
Drill Bit Finish
Uncoated
Decimal Equivalent
0.0386
Grade
High Performance
List Number
A3153
Number of Pieces
1
Point Type
Conventional
Shank Type
Straight
Coolant Through
No
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Measurement System
Metric
Secondary Material Application ISO Code
M, O
Aircraft Drill
No
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Nickel, Steel, Titanium
Material Grade - Machining
High Performance
Finish - Machining
Bright (Uncoated)
Secondary Material Application
Composite, Graphite, Stainless Steel
Standards
DIN 1899
Material - Machining
High Speed Steel
Primary Material Application ISO Code
K, N, P, S
Series
ESU Links
Drill Bit Point Type
4 Facet Point
Circuit Board Drill
Circuit Board Drill Not Included

Description

Micro Drill Bit, Drill Bit Size 0.98 mm, Drill Bit Point Angle 118 Degrees , 4 Facet Point, High Speed Steel, Bright (Uncoated), +0.000 mm/-0.004 mm, Spiral, High Performance
