Shop CLEVELAND

60PC NAS907 Type J Heavy-Duty Cobalt Jobber Length Drill Set Cleveland 2213 Straw HSS-CO 8%, N1-No 60

  • Mfr # C70366

  • Zoro # G2827437

product price:  $247.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
60
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
Cobalt
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C70366
Zoro #
G2827437
UPC #
697334703662
Country of Origin
United States

Dimensions

Drill Bit Dimension Type
Wire
Shank Dia.
#60 to #1
Sizes Included
#1,#2,#3,#4,#5,#6,#7,#8,#9,#10,#11,#12,#13,#14,#15,#16,#17,#18,#19,#20",#21,#22,#23,#24,#25,#26,#27,#28,#29,#30,#31,#32,#33,#34,#35,#36,#37,#88,#39,#40",#41,#42,#43,#44,#45,#46,#47,#48,#49,#50,#51,#52,#53,#54,#55,#56,#57,#58,#59,#60
Drill Bit Size
#60 to #1
Depth x Dia. Ratio
4xD
Size Range
1/16"-1/2"
Depth:Dia. Ratio
4xD
Drill Bit Sizes Included
#1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9
Smallest Drill Bit Size
#60
Drill Length Class
Jobber-Length
Largest Drill Bit Size
#1
Overall Length
1 5/8 in, 1 3/4 in, 1 7/8 in, 2 in, 2 1/8 in, 2 1/4 in, 2 3/8 in, 2 1/2 in, 2 5/8 in, 2 3/4 in, 2 7/8 in, 3 in, 3 1/8 in, 3 1/4 in, 3 3/8 in, 3 1/2 in, 3 5/8 in, 3 3/4 in, 3 7/8 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
60
Cutting Direction
Right Hand
Drill Bit Point Angle
135 Degrees
Drill Bit Material
Cobalt
Includes
Metal Drill Index
Standards
NAS 907 Type J
Drill Bit Grouping
Drill Bit Set
List Number
2213
Point Type
Split Point
Left/Right Hand
Right
Measurement System
Wire
Drill Style
Jobber Drill
Flute Type
Spiral
Shank Type
Straight
Number of Drill Bits
60
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Finish - Machining
Straw/Bronze
Drill Bit Point Type
Split Point
Primary Material Application
Aluminum, Stainless Steel, Steel, Titanium
Material - Machining
Cobalt
Aircraft Drill
Yes
Drill Bit Case Type
Metal Index
Primary Material Application ISO Code
M, N, P, S
Spiral Direction
Right Hand
Number of Flutes
2
Material Grade - Machining
Heavy Duty
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

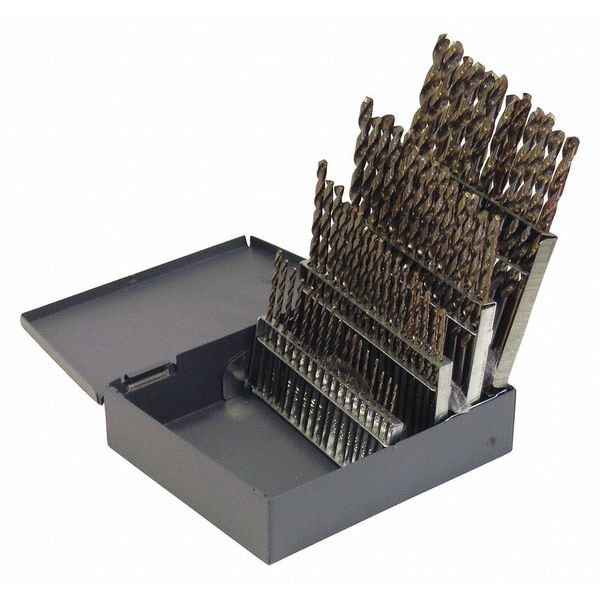

The CLEVELAND C70366 is a cobalt jobber-length drill bit set rated for use in machine drilling applications. This set includes 60 pieces, ranging in size from #60 to #1 (1/16" to 1/2"), intended for drilling aluminum, stainless steel, steel, and titanium. The right-hand spiral drill bits feature split-point geometry (135°) and right-hand spiral flutes for chip evacuation. The set is supplied in a metal drill index for organized storage and includes bits with varying overall lengths to match specified drilling depths. The drill bits meet NAS 907 Type J standards, indicating compatibility with aircraft-grade material machining.

Key Features:

  • Material: Cobalt
  • Drill bit size range: #60 to #1 (1/16" to 1/2").
  • Point type: Split point with 135-degree angle.
  • Shank type and diameter: Straight shank from #60 to #1.
  • Drill length class: Jobber length, with overall lengths from 1 5/8" up to 3 7/8".
  • Depth-to-diameter ratio: 4xD
  • Included metal drill index case for storage.
  • Measurement system: Wire gauge.
  • Compliant with NAS 907 Type J standards for aircraft/aerospace applications.
