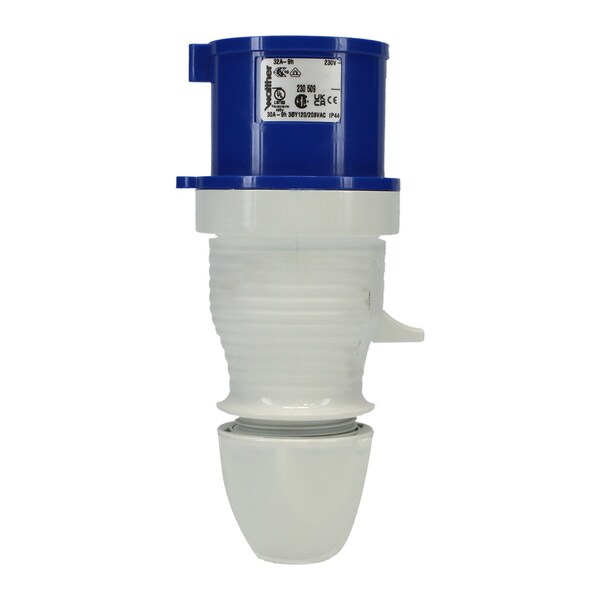

Pin and Sleeve Plug, 30A, 3øY 120/208 or 230, 3 Phase, 3 Pole, Blue, NEMA Not Rated
Mfr # 230509
Zoro # G016275741
product price: $128.99
/ea
Free Shipping & Returns
Key Features
Current Rating
30 A
Voltage Rating
3øY 120/208 or 230
Phase
3
Number of Poles
3
Number of Wires
5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 230509
- Zoro #
- G016275741
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Height
- 7.2 in
- Length
- 3.27 in
- Width
- 2.83 in
Details
- Item
- Pin and Sleeve Plug
- Current Rating
- 30 A
- Voltage Rating
- 3øY 120/208 or 230
- Phase
- 3
- Number of Poles
- 3
- Number of Wires
- 5
- IP Rating
- IP44
- Wire Connection Type
- Screw Terminals
- Housing Color
- Blue
- Cap Type
- No cap or cover
- Standards
- IEC 60309, UL Listed, CSA Certified
- Material
- Thermoplastic
- NEMA Enclosure Rating
- Not Rated
- Application
- Industrial Electrical
- Cable Gland
- External Cable Gland
- Clock Position
- 9
Description
Walther Electric 230509 Plug 30/32A 5 Wire 3oY 120/208 VAC 9Hr IP44 Splashproof Industrial Grade IEC Blue is interchangeable with other IEC 60309 industrial grade 530P9 electrical connectors.
- UL Listed
- CSA Certified
- External Cable Gland
- RETAINING DEVICE : Prevents unintentional withdrawal when male and female devices are connected
- SHROUDED PINS: Nickel-plated solid-brass pins offer corrosion protection and excellent conductivity
- FIRST MAKE/LAST BREAK (FMLB): Preventing making or breaking the circuit under load
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
