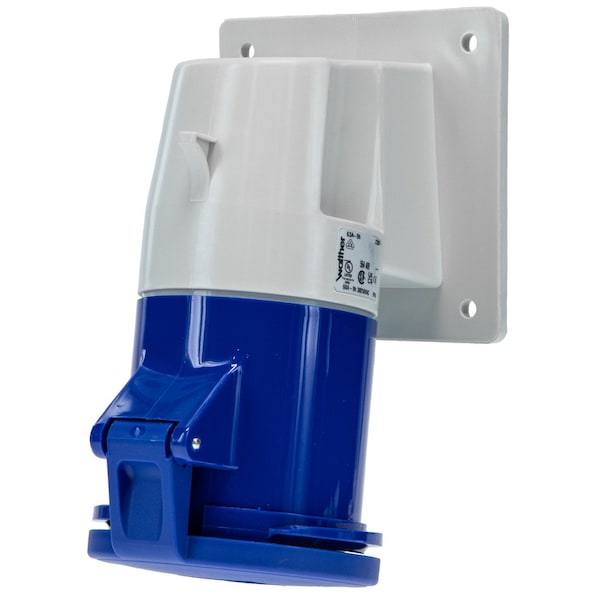

Pin and Sleeve Receptacle, 60A, 3ø 250 or 230, 3 Phase, 3 Pole, Screw Terminals Wire Connection Type
Mfr # 564409
Zoro # G216275732
product price: $409.99
/ea
Free Shipping & Returns
Key Features
Current Rating
60A
Voltage Rating
3ø 250 or 230
Phase
3
Number of Poles
3
Number of Wires
4
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
564409
Zoro #
G216275732
UPC #
-
Country of Origin
Germany
Dimensions
Width
4.49 in
Length
5.51 in
Height
7.64 in
Details
Item
Pin and Sleeve Receptacle
Current Rating
60A
Voltage Rating
3ø 250 or 230
Phase
3
Number of Poles
3
Number of Wires
4
IP Rating
IP44
NEMA Enclosure Rating
Not Rated
Wire Connection Type
Screw Terminals
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
IEC 60309, UL Listed, CSA Certified
Material
Thermoplastic
Cable Gland
Angled 80°
Clock Position
9
Application
Industrial Electrical
Description
Walther Electric 564409 Pin and Sleeve Receptacle 60/63A 4 Wire 3o 250 or 230VAC 9Hr IP44 Splashproof - Industrial Grade IEC Blue is interchangeable with other IEC 60309 industrial grade 460R9 and/or 463R9 electrical plugs.
- UL Listed
- CSA Certified
- Angled 80°
- SPRING LOADED COVER: Snaps into place when disconnected. Protects against environment
- RECESSED CONTACTS: Protects against accidental encounter with live contacts
- COLOR-CODED: All IEC 60309 Pin & Sleeve Devices are color-coded by voltage for easy Identification and safe pairing
- HIGH IMPACT THERMOPLASTIC: Heavy-duty insulated housings are resistant to corrosion and abrasions
- SURFACE MOUNT: Includes 4 pre-drilled holes for quick and easy mounting
