Shop WARN

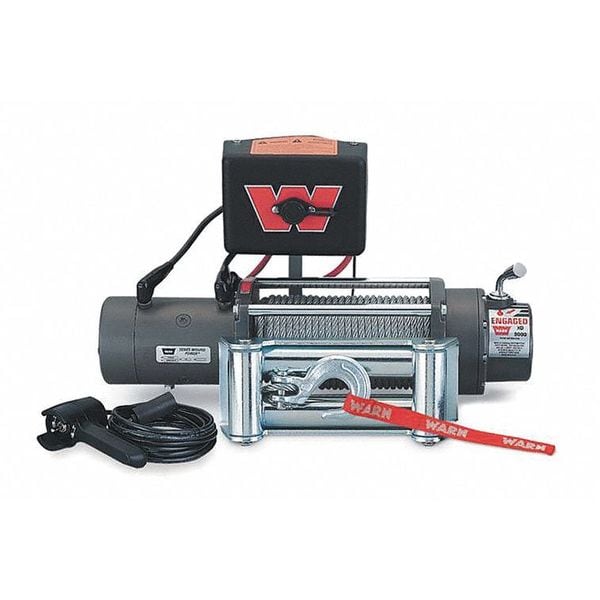

Electric Winch, 4-3/5HP, 12VDC

  • Mfr # 28500

  • Zoro # G0991557

product price:
$
1,439.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Electric Winch Item
Electric Winch
Winch Type
Pulling
Voltage Rating
12V DC
1st Layer Load Capacity
9,000 lb
Motor HP
4.6 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
28500
Zoro #
G0991557
UPC #
012748285007
Country of Origin
Mexico
Electric Winch Item
Electric Winch
Winch Type
Pulling
Voltage Rating
12V DC
1st Layer Load Capacity
9,000 lb
Motor HP
4.6 hp
1st Layer Line Speed
3.9 fpm
Rope Material
Wire
Full Load Amps
460 A
Winch Gear Type
3-Stage Planetary
Item
Electric Winch
Mechanical Brake
Yes
Gear Ratio
156:1
Gear Type
Planetary
Winch Gear Ratio
156:1
Series
XD Series
Drum Capacity for 5/16 In. Cable
100 ft
Clutch Type
Freespooling Sliding Ring Gear
Pulley Block
No
Free Spooling Clutch Type
Lever
Full Load Line Speed
6.3 fpm
1st Layer Line Pull
9000 lb.
Clutch Release
Yes
No Load Line Speed
38 fpm
Color
Gray
Max Drum Capacity per Line Dia
100 ft per 5/16 in
Resistance Properties
Chip Resistant
Maximum Current
478 A
Compatible Line
Wire Rope
Included Components
Clutch Release, Brake
Includes
Roller Fairlead
Body Finish
Powder Coated
Operation
Pulling
Includes Brake
Brake Included
Product Type
Electric Winch
Motor Horsepower
4 5/8 hp
Body Material
Steel
Maximum Pulling Capacity
9,000 lb
Controls
Handheld
Operating Voltage
12V DC
Voltage
12V DC

Description

Electric Winch, 1st Layer Line Speed 3.9 fpm, 1st Layer Load Capacity 9,000 lb, Operating Voltage 12V DC, Motor Horsepower 4 5/8 hp, Maximum Current 478 A, Gear Ratio 156:1, Gear Type Planetary, Line Length 100 ft, Clutch Type Freespooling Sliding Ring Gear, Controls Handheld, Body Material Steel, Color Gray, Compatible Line Wire Rope, Controller Cord Length 12 ft, Maximum Drum Capacity per Line Diameter 100 ft per 5/16 in, Included Components Clutch Release, Brake
