Warner Electric

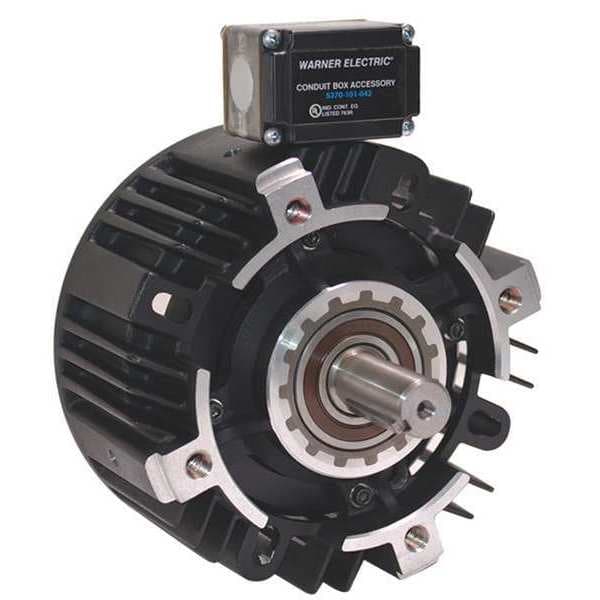

C-Face Brake, Torque 95 Ft-Lb, 90 DC

product price: $2,204.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type C-Face
  • For Use With NEMA C-Face Motor/Reducer
  • Shaft Dia. (In.) 1 1/8 in
  • Length (In.) 7.5625 in
  • Width (In.) 9 5/16 in
See all product information

Product Information

Dimensions

Shaft Dia. (In.) 1 1/8 in
Length (In.) 7.5625 in
Width (In.) 9 5/16 in
Power Lead Length (In.) 30
Shaft Diameter 1 1/8 in
Overall Width 9.31 in
Overall Length 7.56 in

Details

Item Brake
Type C-Face
For Use With NEMA C-Face Motor/Reducer
Static Torque (Ft.-Lb.) 95
NEMA/IEC Frame 213C/182TC/215C/184TC
Enclosure Vented
Max. RPM 3,600 RPM
Brake Mouting Position Horizontal
Voltage (DC) 90
Agency Compliance UL/CSA
Finish Black Paint
Includes Mounting Hardware
Mounts On NEMA C-Face Motor or Between Motor and Reducer
Series EM-210
Housing Material Finish Black Paint
Static Torque 95 ft-lb
Coil Voltage 24V DC
Mounting Orientation Horizontal
Maximum Speed 3,600 RPM
Clutch/Brake Type Magnetic Clutch/Brake
Enclosure Type Vented
Standards UL Listed

Description

Brake, Clutch/Brake Type Magnetic Clutch/Brake, Coil Voltage 24V DC, Enclosure Type Vented, Static Torque 95 ft-lb, Shaft Diameter 1 1/8 in, Maximum Speed 3,600 RPM, Mounting Location NEMA C-Face Motor or Between Motor and Reducer, For Use With NEMA C-Face Motor/Reducer, Includes Mounting Hardware, Overall Length 7.56 in, Overall Width 9.31 in, Phase -, Service Factor -, Standards UL Listed, Application -, Converts -
