  9. 1" FNPT Brass Electronic Ball Valve 2-Way

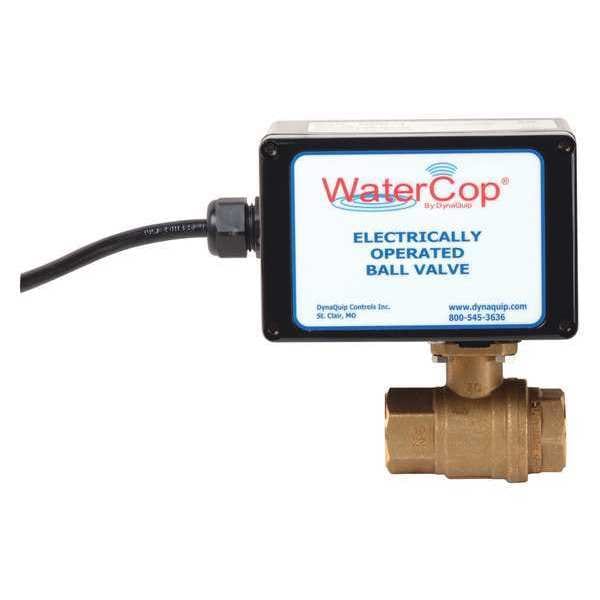

Watercop 1" FNPT Brass Electronic Ball Valve 2-Way EHW25AJP01 - main

1" FNPT Brass Electronic Ball Valve 2-Way

  • Mfr # EHW25AJP01

  • Zoro # G5162911

product price: $282.14
/ea
Free Shipping & Returns

Key Features

Body Material
Lead-Free Brass
Body Style
2-Way
Stem Type
Blowout Proof
Body Seal Material
Viton
Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EHW25AJP01
Zoro #
G5162911
UPC #
649848055881
Country of Origin
United States

Dimensions

Pipe Size
1"
Overall Length
5 in
Connection Size - Side 2
1 in
Connection Size - Side 1
1 in
Nominal Valve Size
1 in

Details

Body Material
Lead-Free Brass
Body Style
2-Way
Stem Type
Blowout Proof
Body Seal Material
Viton
Voltage
120V AC
Mount
Direct / Integral
Ball Valve Product Group
Actuated
Port
Full
Standards
AB1953, ANSI 372, ISO 5211, Louisiana HB.471, Maryland HB.372 Lead Free, NEMA 4, NSF61g, Reduction of Lead in Drinking Water Act S.3874, RoHs, Section 116875 of the California Health & Safety Code, Vermont S.0152 Lead Free
Seat Material
RTFE
Max. Operating Pressure Differential
200 psi
Max. Pressure
600 psi CWP
Item
Electronic Actuated Ball Valve
Ambient Temp. Range
-35 Degrees to 165 Degrees F
Ball Valve Basic Body Material
Brass
Valve Structure
2-Piece
Ball Material
Chrome Plated Brass
Temp. Range
-20 Degrees to 400 Degrees F
Stem Material
Nickel Plated Brass
Connection Type
FNPT x FNPT
Seal Material
FKM
NEMA Enclosure Rating
4
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 1
Female
Coefficient of Volume (Cv)
52
Valve Ways
2-Way
Ball Port Style
Full Port
Actuator Ambient Temperature - Minimum
35 Degrees F
Operating Temperature - Maximum
165 Degrees F
Actuator Cycle Time - 90 Degrees
2.5 sec
Actuator Operation
90 Degrees
Actuator Motor Type
Unidirectional
Connection Gender - Side 2
Female
Operating Temperature - Minimum
35 Degrees F
IP Rating
IP66
Actuator Duty Cycle
25 %
Valve Body Style
Straight
Valve Construction
Two-Piece
Connection Type - Side 2
NPT
Maximum Pressure - Operating
600 psi
NSF Certifications for Food and Drinking Water
NSF 61
3-A Standard Compliance
Not Rated
Fail Safe Position
Fail Last
For Media
Water
Actuator Ambient Temperature - Maximum
165 Degrees F
Connection Type - Side 1
NPT
Maximum Operating Pressure Differential
200 psi
Included Mounting
ISO 5211 Actuator Mounting Pad

Description

Electrically Actuated Two-Way Ball Valve, Ball Material Chrome-Plated Brass, Nominal Valve Size 1 in, Maximum Pressure - Operating 600 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material RPTFE, Seal Material FKM, Voltage 120V AC, Fail Safe Position Fail Last, IP Rating IP66, Actuator Cycle Time - 90 Degrees 2.5 sec, Valve Construction Two-Piece, Actuator Features Not Applicable, Connection Gender - Side 1 Female, Connection Type - Side 1 NPT
