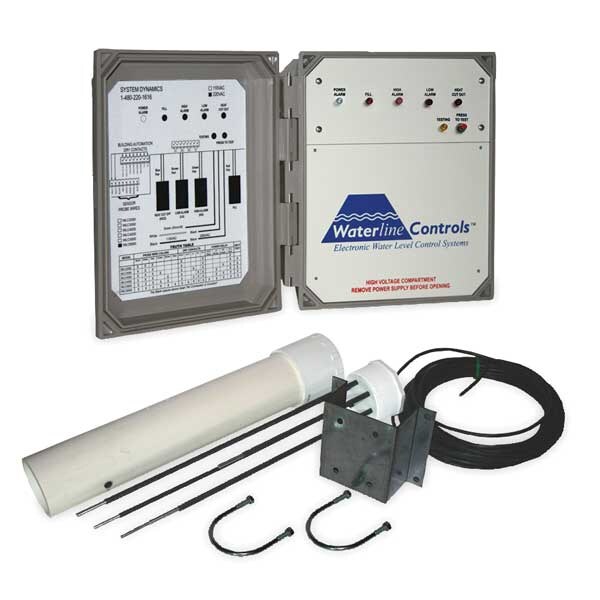

Waterline Controls Level Control High/Low/ Low Heat Alarm WLC6000-220VAC - main

Level Control High/Low/ Low Heat Alarm

  • Mfr # WLC6000-220VAC

  • Zoro # G2676265

product price: $1,490.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
220V AC 50/60Hz
Relays
30 Amps at 250V AC
Switch Type
(4)SPST
Sensor Dia. (In.)
3 in
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WLC6000-220VAC
Zoro #
G2676265
UPC #
-
Country of Origin
United States

Dimensions

Sensor Dia. (In.)
3 in
Enclosure Height (In.)
8 3/4 in
Max. Circuit Length (Ft.)
50 ft
Enclosure Width (In.)
10 1/2 in
Enclosure Depth (In.)
6 in
Sensor Cord Length (Ft.)
50 ft
Sensor Length (In.)
20 in
Low-Low Alarm Probe Length
17 in
Reference Probe Length
17 in
Low Alarm Probe Length
16 3/8 in
Process Connection Size
1 in
Fill Stop Probe Length
14 in
Housing Height
9 1/2 in
Fill Start Probe Length
15 1/2 in
Housing Width
10 1/2 in
High Alarm Probe Length
10 3/8 in
Sensor Head Diameter
3 in
Housing Depth
5 in

Details

Input Voltage
220V AC 50/60Hz
Relays
30 Amps at 250V AC
Switch Type
(4)SPST
Includes
Installation Instructions, Mounting Brackets and U Bolts, Sensor Wire, Stainless Steel Sensor Assembly, Waterline Controller in NEMA 4x Box
Item
Water Level Control
Number of Switches
4
Agency Compliance
ETL Listed
Operating Range
1 1/2, 3, 6, and 10 in
Type
Universal
Special Features
110Vac Solenoid Required ( Purchase Seperately) Rated For Outdoor Installation, Building Automation Dry Contracts, Can Be Integrated Into Building Automation System, Compensates For Wave Action, Easy To Read Led Display, Low Voltage Probe, Modular Construction, No High Voltage In The Wet Area Of The System, No Moving Parts, One-Step Internal Testing System For The Electronics, Seperate Relay For Each Set Point, Stainless Steel Probes
Valve
Can Be Used With 1 in Npt And 110Vac Or Eqivalent Made By Asco Model 8221
Special Information
The WLC Series is perfect in any application where water level management is important such as cooling tower basins and water holding tanks for cooling towers. It uses a microprocessor that monitors all probes for correct operation and then provides the corresponding outputs to drive the power relays, the Building Automation System and a visual indication of the operational status. The Modular construction and a self-test feature insure user-friendly operation. By using a very low voltage and current, WLC Series sensors never foul or degrade
Enclosure Color
Gray
Sensor Placement
On The Environment Wall or In A Static Pipe
Application
Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks
Control Type
Electronic With Microprocessor For Site Automation or Integration
Sensors Included
Fill Height With High and Low Level Alarm and Low Heat Cut Off
Enclosure Type
NEMA 4X
Voltage
220V AC
Standards
C-ETL-US
Housing Material
Polycarbonate
Reference Probe Color
Black
Outlet Pressure - Maximum
30 psi
Number of Relays
4
Dry Contact Relay Contact Form
SPST
Lockable
Lockable
Included Flood Protection Lockout
Flood Protection Lockout Not Included
Fill Stop Probe Color
Red
Sensor Material
PVC
Number of Indicator Lights
5
NEMA Rating
4X
Power Relay Current Rating
30 A
High Alarm Probe Color
Green
Dry Contact Switch Action
Normally Open
Power Relay Switch Action
Normally Closed, Normally Open
Probes Included
Fill Start, Fill Stop, High Alarm, Low Alarm, Low-Low Alarm, Reference
Mounting Style
Mounting Assembly
Power Relay Contact Form
DPDT
Number of Dry Contacts
5
Process Connection Type
NPT
Operating Temperature - Maximum
200 Degrees F
Feed Choices
Fixed Feed
Functions
Fill, High Alarm, Low Alarm
Dry Contact Current Rating
0.5 A
Fill Start Probe Color
White
Low Alarm Probe Color
Brown
Low-Low Alarm Probe Color
Blue

Description

Water Level Control, Application Cooling Towers, Water Water Tanks, Storm Water tanks, Sewage Water Systems, Well Water Holding tanks, Irrigation Lakes, Boilers, Water Storage Tanks, Dry Contact Current Rating 0.5 A, Dry Contact Relay Contact Form SPST, Dry Contact Switch Action Normally Open, Electrical Lead Length Not Applicable, Feed Choices Fixed Feed, Fill Start Probe Color White, Fill Start Probe Length 15 1/2 in, Fill Stop Probe Color Red, Fill Stop Probe Length 14 in
