Shop WATTS

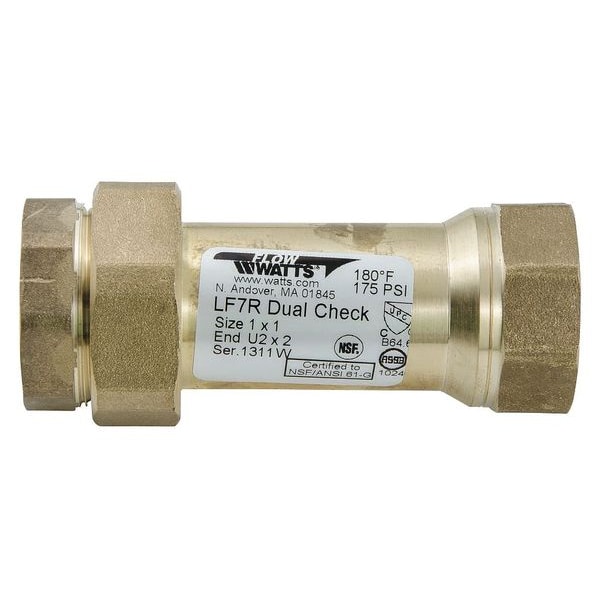

1" FNPT Bronze Dual Check Valve

  • Mfr # 1 LF7 U2-2

  • Zoro # G5276345

product price:  $111.59
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Connection Type
FNPT x FNPT
Connection
FNPT x FNPT
Body Material
Lead Free Brass
Max. Steam Pressure - Valves
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1 LF7 U2-2
Zoro #
G5276345
UPC #
098268020397
Country of Origin
United States

Dimensions

Pipe Size
1"
Length
3-7/8"
Width
1-7/8"
Pipe or Tube Size - Check Valves
1"
Overall Length
3.88 in
Pipe or Tube Size
1 in
Connection Size - Side 2
1 in
Connection Size - Side 1
1 in
Nominal Valve Size
1 in
Wire Rope Length
3.88 in

Details

Connection Type
FNPT x FNPT
Connection
FNPT x FNPT
Body Material
Lead Free Brass
Max. Steam Pressure - Valves
Not Rated
Application - Valves
General Purpose
Item - Check Valves
Check Valve
Max. Pressure
175 psi
Standards
ASSE 1012, ASSE 1024, cCSAusB64.6, CSA B64
Compliance
ASSE 1024
Body Material - Valves
Bronze
Mechanism and Body Design
Inline
Max. Temp. - Valves
180 Degrees F
Material of Construction
Lead Free Bronze
Flow Design
Dual
Item
Dual Check Valve
Connection Type - Check Valves
FNPT x FNPT
Seat Material
Plastic
Seal Material
Buna-N
Spring Material
Stainless Steel
Manufacturer Warranty
1 yr
Connection Type - Side 2
NPT
Maximum Pressure - Steam
Not Rated
Operating Temperature - Maximum
180 Degrees F
Connection Gender - Side 1
Female
For Media
Water
Operating Temperature - Minimum
33 Degrees F
Maximum Pressure - Operating
150 psi
Connection Type - Side 1
NPT
Connection Gender - Side 2
Female
Mounting Orientation
Horizontal, Vertical
Hazard Protection Level
Low Health Hazard
Valve Series
LF7

Description

Dual Check Valve, Size 1 In., Connection FNPT, Body Material Copper Silicon Alloy, Max. Temp. 180 Degrees , Max. Pressure 150 psi, Length 3 7/8 in, Standards ASSE 1012, ASSE 1024, cCSAusB64.6, CSA B64, Compliance ASSE 1024

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
