1/2 In Lead-Free Thermostatic Mixing Valve, Crimp End Connections
Mfr # 0559114
Zoro # G812415235
product price: $168.99
/ea
Free Shipping & Returns
Key Features
Outlet Type
Crimped
Inlet Type
Crimped
Length
5.25 in
Body Material
Lead Free Copper Silicon Alloy
Depth
5.56 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
0559114
Zoro #
G812415235
UPC #
98268451771
Country of Origin
Unknown
Dimensions
Length
5.25 in
Depth
5.56 in
Details
Outlet Type
Crimped
Inlet Type
Crimped
Body Material
Lead Free Copper Silicon Alloy
Finish
Rough Bronze
Description

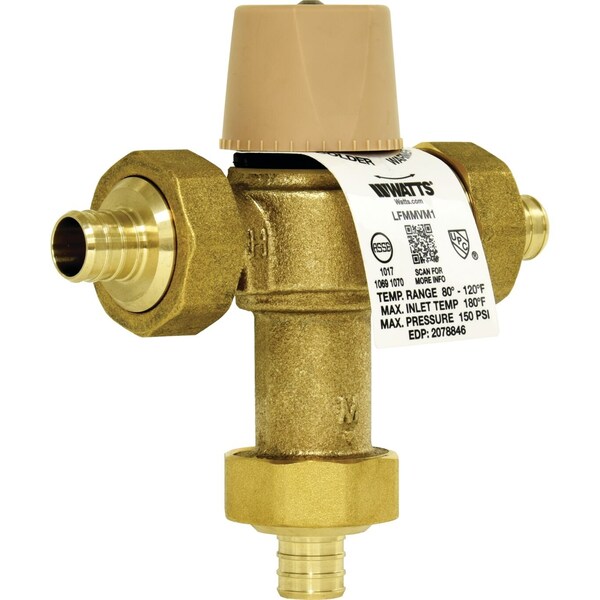

This 1/2 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, crimp end connections for PEX tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F 27 to 49 degrees C. The maximum pressure rating is 150 psi 10.3 bar.
