  11. 3/4" FNPT x MNPT Brass Dual Check Valve

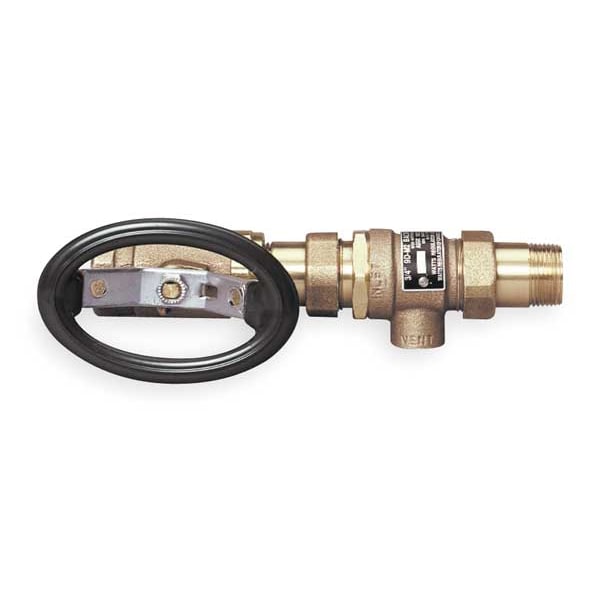

Watts 3/4" FNPT x MNPT Brass Dual Check Valve 912-HP 3/4" - main

3/4" FNPT x MNPT Brass Dual Check Valve

  • Mfr # 912-HP 3/4"

  • Zoro # G3065535

product price: $832.85
/ea
Free Shipping & Returns

Key Features

Pipe Size
3/4"
Connection Type
FNPT x MNPT
Connection
MNPT x FNPT
Body Material
Brass
Max. Steam Pressure - Valves
Not Rated
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
912-HP 3/4"
Zoro #
G3065535
UPC #
098268324945
Country of Origin
United States

Dimensions

Pipe Size
3/4"
Pipe or Tube Size - Check Valves
3/4 in
Length
9-3/16"
Overall Height
2.43 in
Pipe or Tube Size
3/4 in
Overall Width
9.18 in
Connection Size - Side 1
3/4 in
Nominal Valve Size
3/4 in
Connection Size - Side 2
3/4 in

Details

Connection Type
FNPT x MNPT
Connection
MNPT x FNPT
Body Material
Brass
Max. Steam Pressure - Valves
Not Rated
Max. Temp. - Valves
180 Degrees F
Body Material - Valves
Brass
Flow Design
Dual with Vent
Application - Valves
General Purpose
Material of Construction
Brass
Standards
ASSE1012, CSA B643, CSA B64.8
Connection Type - Check Valves
MNPT x FNPT
Mechanism and Body Design
Inline
Item
Dual Check Valve
Item - Check Valves
Check Valve
Max. Pressure
400 psi
Seat Material
PTFE
Flow
22 gpm
Includes
Strainer
Connection Gender - Side 2
Male
Manufacturer Warranty
1 yr
Operating Temperature - Minimum
180 Degrees F
For Media
Water
Maximum Pressure - Operating
400 psi
Includes Atmospheric Vent
Atmospheric Vent Included
Connection Type - Side 2
NPT
Mounting Orientation
Horizontal, Vertical
Connection Type - Side 1
NPT
Connection Gender - Side 1
Female
Hazard Protection Level
Low Health Hazard
Operating Temperature - Maximum
180 Degrees F
Valve Series
912HP

Description

Dual Check w Atmospheric Vent, Size 3/4 In., Connection FNPT x MNPT, Body Material Brass, Max. Temp. 180 Degrees , Max. Pressure 400 psi, Length 9 3/16 in, Standards ASSE 1012, CSA B64.8, CSA B643
