Shop WATTS

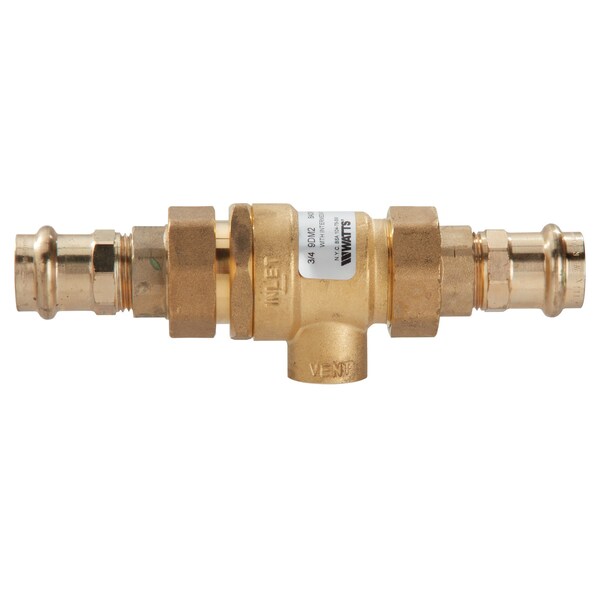

3/4" Press Brass Dual Check Valve

  • Mfr # 3/4 9DM2-PRESS

  • Zoro # G4016350

product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3/4"
Connection Type
FNPT Union
Connection
Press x Press
Body Material
Brass
Cap to Inlet Center
1 15/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3/4 9DM2-PRESS
Zoro #
G4016350
UPC #
-
Country of Origin
New Zealand

Dimensions

Pipe Size
3/4"
Width
2 9/16 in
Overall Height
2.56 in
Length
4 1/2 in
Pipe or Tube Size - Check Valves
3/4 in
Overall Length
4.5 in
Pipe or Tube Size
3/4 in
Nominal Valve Size
3/4 in
Connection Size - Side 1
3/4 in
Overall Width
2.56 in
Connection Size - Side 2
3/4 in
Wire Rope Length
4.5 in

Details

Connection Type
FNPT Union
Connection
Press x Press
Body Material
Brass
Cap to Inlet Center
1 15/16 in
Max. Water Pressure
175 psi
Flow Design
Dual
Cracking Pressure - Check Valves
25.0 psi
Mounting Orientation - Check Valves
Horizontal, Vertical
Material of Construction
Brass
Max. Temp. - Valves
250 Degrees F
Cracking Pressure
25 psi
Seat Material
Brass
Standards
ASSE 1012, cCSAus, CSA B64
Max. Steam Pressure - Valves
Not Rated
Sub-Category
Brass
Item - Check Valves
Check Valve
Item
Dual Check Valve
Seal Material - Check Valves
Rubber
Seat Material - Check Valves
Stainless Steel
Application - Valves
General Purpose
Seal Material
Rubber
Mechanism and Body Design
Inline
Flow
18.7 gpm
Screen Material
Stainless Steel
Max. Pressure
175 psi
Mounting Position
Vertical or Horizontal
Max. Water Pressure - Valves
175 psi
Flow - Valves
18.0 gpm
Body Material - Valves
Brass
Connection Type - Check Valves
Press x Press
Compliance
ASSE, CSA, BSA 104-75-SM
Mounting Orientation
Horizontal, Vertical
Manufacturer Warranty
1 yr
Hazard Protection Level
Low Health Hazard
Connection Gender - Side 2
Female
Operating Temperature - Minimum
33 Degrees F
Operating Temperature - Maximum
250 Degrees F
Includes Atmospheric Vent
Atmospheric Vent Included
Connection Type - Side 2
Press
Connection Gender - Side 1
Female
Connection Type - Side 1
Press
For Media
Water
Maximum Pressure - Steam
Not Rated
Maximum Pressure - Operating
175 psi
Valve Series
9D

Description

The WATTS 9DM2-PRESS 3/4 in. dual check valve is a general-purpose inline check valve with a brass body and press x press connections. It is for water service and uses a dual check flow design for reverse-flow control in plumbing lines. This valve includes an atmospheric vent and is rated for low health hazard applications.

Key Features:

  • Valve type: Dual check valve
  • Valve series: 9D
  • Body material: Brass
  • Connection type: Press x Press
  • Connection size: 3/4 in. x 3/4 in.
  • Connection gender: Female x Female
  • Flow design: Dual
  • Mechanism and body design: Inline
  • For media: Water
  • Cracking pressure: 25 psi
  • Flow rate: 18.7 gpm
  • Maximum pressure: 175 psi
  • Operating temperature range: 33 degrees F to 250 degrees F
  • Mounting orientation: Horizontal, Vertical
  • Seal material: Rubber
  • Seat material: Brass, Stainless Steel
  • Screen material: Stainless Steel
  • Overall size: 4.5 in. L x 2.56 in. W x 2.56 in. H
  • Standards: ASSE 1012, cCSAus, CSA B64
  • Compliance: ASSE, CSA, BSA 104-75-SM
