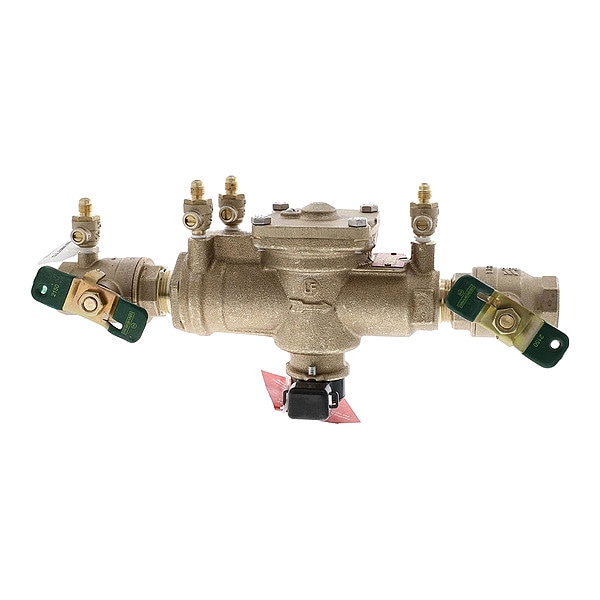

Backflow Preventer, Bronze, NPT

  • Mfr # 88004112
  • Zoro # G608351334
product price:
$
1,025.99
/ea
Free Shipping & Returns

Key Features

Body Material
Copper Silicon Alloy
Overall Length
14.5 in
Max. Temp.
180 Degrees F
Temp. Range
33 Degrees to 180 Degrees F
Max. Pressure
175 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
88004112
Zoro #
G608351334
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
14.5 in
Overall Height
6.25 in
Size
1 in
Width
3 7/16 in
Length
14.5 in
Connection Size - Side 1
1 in
Connection Size - Side 2
1 in
Check Valve Length
9 1/2 in
Overall Width
3.44 in
Nominal Valve Size
1 in
Wire Rope Length
14.5 in

Details

Body Material
Copper Silicon Alloy
Item
Backflow Preventer
Max. Temp.
180 Degrees F
Temp. Range
33 Degrees to 180 Degrees F
Max. Pressure
175 psi
Compliance
ASSE
Seat Material
Plastic
Standards
ASSE 1013, AWWA C511, CSA B64.4, IAPMO File No. 1563, NSF, UPC, USC-FCCCHR
Connection
NPT
Features
(2) Inline Check Valves, Accessible Internal Parts, Captured Springs, Flood Sensor, Quarter Turn Ball Valve Shutoffs with Tee Handles, Replaceable Check Seats
Operating Temperature - Minimum
33 Degrees F
Backflow Preventer Type
Reduced Pressure Assembly (RP)
Includes Flow Meter
No Flow Meter
Manufacturer Warranty
1 yr
Connection Gender - Side 1
Female
Shut-Off Valve Included
Ball Valve
Number of Test Ports
4
Connection Type - Side 2
NPT
Includes Freeze Sensor
No Freeze Sensor
Includes Flood Protection
Flood Protection Included
Handle Type
Tee
Hazard Protection Level
High Hazard
Operating Temperature - Maximum
180 Degrees F
Connection Type - Side 1
NPT
Connection Gender - Side 2
Female
For Media
Water
Maximum Pressure - Operating
175 psi
Includes Strainer
No Strainer
Flow
80 gpm
Valve Series
LF009

Description

Backflow Preventer,Bronze,NPT
