Shop WATTS

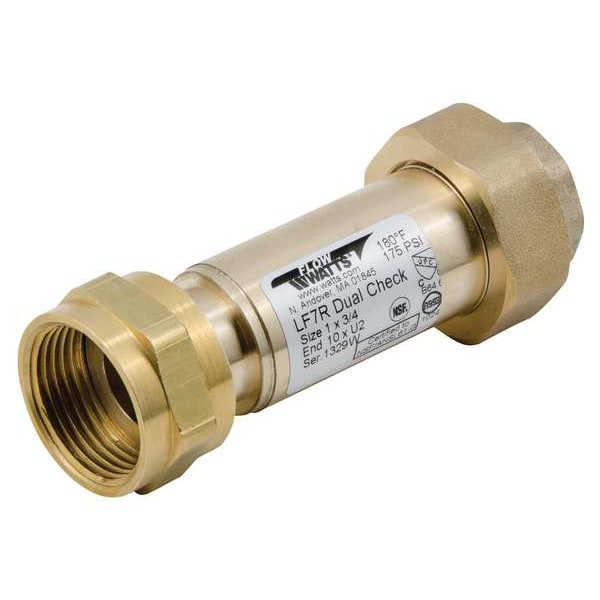

Backflow Preventer, Size 1", 175 psi

  • Mfr # 1X3/4 LF7R10-U2
  • Zoro # G905303623
product price:
$
171.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Temp. Range
33 Degrees to 180 Degrees F
Standards
ANSI, ASSE 1024
Flow
26 gpm
Seat Material
EPDM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1X3/4 LF7R10-U2
Zoro #
G905303623
UPC #
00098268533613
Country of Origin
United States
Item
Backflow Preventer
Body Material
Brass
Temp. Range
33 Degrees to 180 Degrees F
Standards
ANSI, ASSE 1024
Flow
26 gpm
Seat Material
EPDM
Max. Temp.
180 Degrees F
Max. Pressure
175 psi
Spring Material
Stainless Steel
Connection
FNPT
Features
Available with Combination of Inlet/Outlet Sizes, Types or Thread and End Connection, Can be Installed Vertically or Horizontally
Mounting Orientation
Horizontal, Vertical
Seal Material
EPDM
For Media
Water
Connection Type - Side 1
Meter Swivel
Connection Gender - Side 2
Female
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
33 Degrees F
Hazard Protection Level
Low Hazard
Check Mechanism Material
Plastic
Manufacturer Warranty
1 yr
Maximum Pressure - Operating
150 psi
Connection Gender - Side 1
Female
Connection Type - Side 2
Union NPT
Valve Series
LF7R

Description

Backflow Preventer, Size 1 in, Connection FNPT, Body Material Brass, Temp. Range 33 Degrees to 180 Degrees F, Max. Temp. 180 Degrees F, Max. Pressure 175 psi, Width Not Applicable, Length 4 1/2 in, Height 1 7/8 in, Features Available with Combination of Inlet/Outlet Sizes, Types or Thread and End Connection, Can be Installed Vertically or Horizontally, Standards ANSI, ASSE 1024
