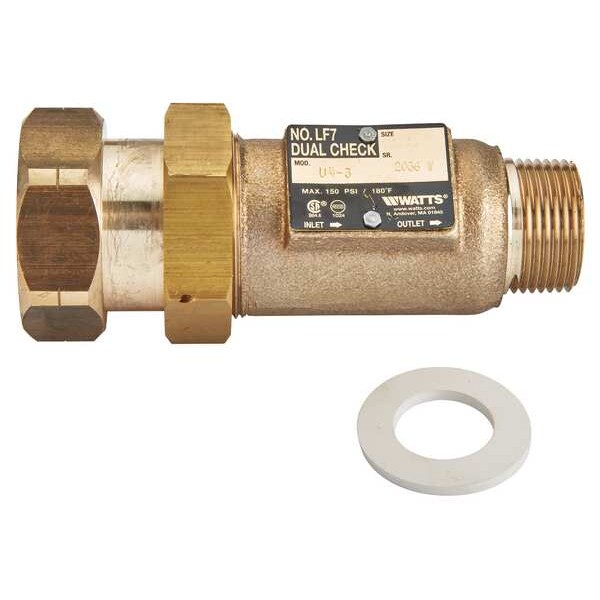

Backflow Preventer, Size 1", 175 psi
- Mfr # 1X3/4 LF7RU4-3
- Zoro # G705303601
product price:Â
$
163.99
/ea
Free Shipping & Returns
Key Features
Body Material
Brass
Temp. Range
33 Degrees to 180 Degrees F
Spring Material
Stainless Steel
Max. Pressure
175 psi
Standards
ANSI, ASSE 1024
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1X3/4 LF7RU4-3
- Zoro #
- G705303601
- UPC #
- 00098268824742
- Country of Origin
- United States
- Item
- Backflow Preventer
- Body Material
- Brass
- Temp. Range
- 33 Degrees to 180 Degrees F
- Spring Material
- Stainless Steel
- Max. Pressure
- 175 psi
- Standards
- ANSI, ASSE 1024
- Connection
- FNPT
- Max. Temp.
- 180 Degrees F
- Seat Material
- EPDM
- Features
- Available with Combination of Inlet/Outlet Sizes, Types or Thread and End Connection, Can be Installed Vertically or Horizontally
- Flow
- 26 gpm
- Connection Type - Side 1
- NPT
- Manufacturer Warranty
- 1 yr
- Connection Gender - Side 2
- Male
- Hazard Protection Level
- Low Hazard
- Mounting Orientation
- Horizontal, Vertical
- Maximum Pressure - Operating
- 175 psi
- Operating Temperature - Minimum
- 33 Degrees F
- Seal Material
- EPDM
- Operating Temperature - Maximum
- 180 Degrees F
- Connection Gender - Side 1
- Female
- Connection Type - Side 2
- NPT
- For Media
- Water
- Valve Series
- LF7R
Description
Backflow Preventer, Size 1 in, Connection FNPT, Body Material Brass, Temp. Range 33 Degrees to 180 Degrees F, Max. Temp. 180 Degrees F, Max. Pressure 175 psi, Width Not Applicable, Length 3 11/16 in, Height 1 7/8 in, Features Available with Combination of Inlet/Outlet Sizes, Types or Thread and End Connection, Can be Installed Vertically or Horizontally, Standards ANSI, ASSE 1024
