Shop WATTS

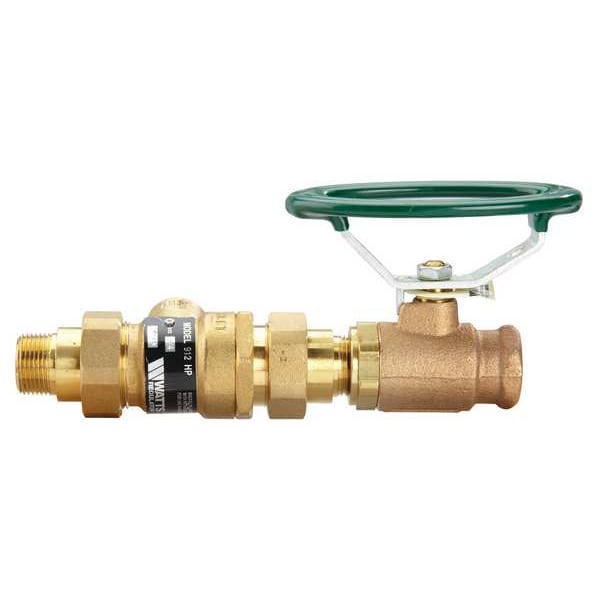

Backflow Preventer, Size 1", 400 psi

  • Mfr # 1 912HP
  • Zoro # G205303644
product price:
$
1,435.99
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Temp. Range
180 Degrees to 200 Degrees F
Overall Height
2.43 in
Standards
ASTM B-16, ASTM B-584, B-124 ENP
Seat Material
PTFE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1 912HP
Zoro #
G205303644
UPC #
00098268873313
Country of Origin
United States
Item
Backflow Preventer
Body Material
Brass
Temp. Range
180 Degrees to 200 Degrees F
Standards
ASTM B-16, ASTM B-584, B-124 ENP
Seat Material
PTFE
Includes
Strainer
Max. Pressure
400 psi
Flow
22 gpm
Features
All Bronze Ball Valve and Brass Backflow Preventer, Ball Valve Design Includes Reinforced/Enhanced PTFE Seats and Electroless Nickel Plated Brass Ball, Blow-Out Proof Pressure Retaining Stem, and Low Profile Oval Handle, In the Event of Fouling of the Downstream Check Valve, Leakage Would be Vented to Atmosphere Thereby Providing a Visual Indication of Failure of the Check Assembly, Integral Stainless Steel Screen Protects the Check Assemblies from Fouling Due to Dirt and Debris
Connection
FNPT
Max. Temp.
200 Degrees F
Manufacturer Warranty
1 yr
Connection Gender - Side 2
Male
Operating Temperature - Maximum
180 Degrees F
Connection Type - Side 1
NPT
Maximum Pressure - Operating
400 psi
Connection Gender - Side 1
Female
For Media
Water
Mounting Orientation
Horizontal, Vertical
Connection Type - Side 2
NPT
Operating Temperature - Minimum
180 Degrees F
Hazard Protection Level
Low Hazard
Includes Atmospheric Vent
Atmospheric Vent Included
Valve Series
912HP

Description

Backflow Preventer, Size 1 in, Connection FNPT, Body Material Brass, Temp. Range 180 Degrees to 200 Degrees F, Max. Temp. 200 Degrees F, Max. Pressure 400 psi, Width Not Applicable, Length 10 in, Height 2 7/16 in
