Shop WATTS

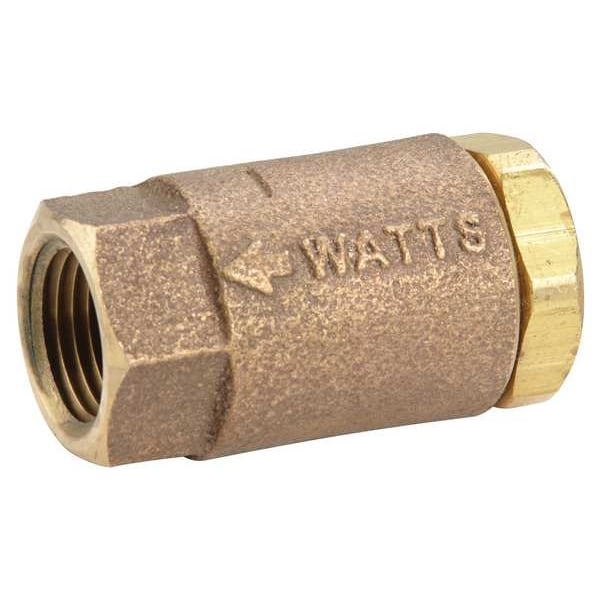

Check Valve, 2.125 in Overall L

  • Mfr # LF601 3/8

  • Zoro # G205303699

product price:
$
220.99
/ea
Free Shipping & Returns

Key Features

Connection Type
FNPT
Body Material
Copper Silicon Alloy
Temp. Range
-20 Degrees to 100 Degrees F
Width
1 1/4 in
Min. Temp. - Valves
-20 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LF601 3/8
Zoro #
G205303699
UPC #
00098268653335
Country of Origin
United States

Dimensions

Width
1 1/4 in
Length
2.13 in
Overall Height
1 1/4 in
Size
3/8 in
Height
1 1/4 in
Pipe or Tube Size
3/8 in
Connection Size - Side 1
3/8 in
Overall Length
2.13 in
Nominal Valve Size
3/8 in
Wire Rope Length
2.13 in

Details

Item
Check Valve
Connection Type
FNPT
Body Material
Copper Silicon Alloy
Temp. Range
-20 Degrees to 100 Degrees F
Min. Temp. - Valves
-20 Degrees F
Max. Pressure
250 psi
Connection
FNPT
Mechanism and Body Design
Inline Spring
Item - Check Valves
Check Valve
Spring Material
Stainless Steel
Max. Temp. - Valves
100 Degrees F
Standards
ANSI B16.18, NSF 372
Features
Cast Copper Silicon Alloy Body for Durability, Install in Horizontal or Vertical Position with Upward Flow, Integral Lead Free- Copper Silicon Alloy Seat, Low Pressure Drop Equivalent to a Swing Check, Silent Operation, Viton(R) Disc
Flow Design
Single
Max. Water Pressure - Valves
250 PSI @ 100 Degrees F
Max. Steam Pressure - Valves
Not Rated
Body Material - Valves
Lead Free Cast Copper Silicon Alloy
Max. Temp.
100 Degrees F
Seat Material
Copper Silicone Alloy
Seal Material
FKM
Cracking Pressure
0.5 psi
Full Flow - Valves
No
Mounting Orientation
Horizontal, Vertical
3-A Standard Compliance
Not Rated
Maximum Pressure - Operating
250 psi
Operating Temperature - Minimum
-20 Degrees F
Connection Type - Side 1
NPT
Valve Body Style
Inline
Operating Temperature - Maximum
100 Degrees F
Silent Check
Silent
Maximum Pressure - Steam
Not Rated
Check Mechanism Material
Copper Silicone Alloy
Includes Counterweight
No Counterweight
Connection Gender - Side 2
Female
For Media
General Purpose
Connection Type - Side 2
NPT
Connection Gender - Side 1
Female
Check Mechanism
Disc

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring, Body Material - Valves Lead Free Cast Copper Silicon Alloy, Pipe or Tube Size 3/8 in, Connection Type FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material Viton, Max. Temp. - Valves 100 Degrees F, Min. Temp. - Valves -20 Degrees F, Max. Water Pressure - Valves 250 PSI @ 100 Degrees F, Max. Steam Pressure - Valves Not Rated
