Shop WATTS

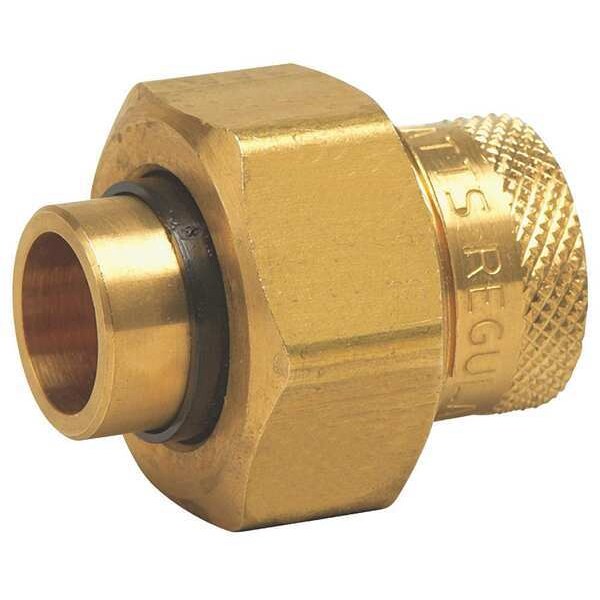

Dielectric Union, 1In, FBP x Solder, 250psi

  • Mfr # 1 LF3008

  • Zoro # G4608536

product price:
$
61.29
/ea

Key Features

Pipe Fitting Material
Lead Free Brass
Fitting Connection Type
FIP x Solder
Pipe Size - Pipe Fitting
1"
Max. Pressure
250 psi
Standards
ANSI B16.39; Federal Specifications for Tensile Strength and Thread End Connections
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1 LF3008
Zoro #
G4608536
UPC #
098268430370
Country of Origin
United States
Item
Dielectric Union
Pipe Fitting Material
Lead Free Brass
Fitting Connection Type
FIP x Solder
Max. Pressure
250 psi
Standards
ANSI B16.39; Federal Specifications for Tensile Strength and Thread End Connections
Max. Temp.
180 Degrees F
Gasket Material
Buna-N
Pipe Fitting Connection Type
FIP x Solder
Nut Material
Brass
Basic Pipe Fitting Material
Metal
Insulator Material
Polysulfone
Basic Pipe Fitting Shape
Union
Specific Fitting Shape
Dielectric Union
Fitting Side B Gender
Female
Low Lead Certified Standard
NSF/ANSI 372
Application
Gases, Non-Potable Water
Maximum Operating Pressure
250 psi
Fitting Side A Material
Brass
Dielectric Union Lead Free Designation
Lead-Free
Low Lead Compliance Level
Certified
Fitting Side B Material
Brass
Temp. Range
33 Degrees to 180 Degrees F
Color
Gold
Fitting Side A Type
Threaded
Fitting Side B Type
Socket
Fitting Side A Gender
Female
Minimum Operating Temperature
33 Degrees F
Maximum Operating Temperature
180 Degrees F
Side A Thread Type
NPT

Description

Dielectric Straight, Brass, Brass, 1 in, Female, Threaded, 1 in, 2 1/2 in, Female, Socket, Insulator Material Polysulfone, Gasket Material NBR, Nut Material Brass, Class Not Applicable, 250 psi Maximum Operating Pressure, 33 Degrees to 180 Degrees F, 2 1/2 in Overall Length
