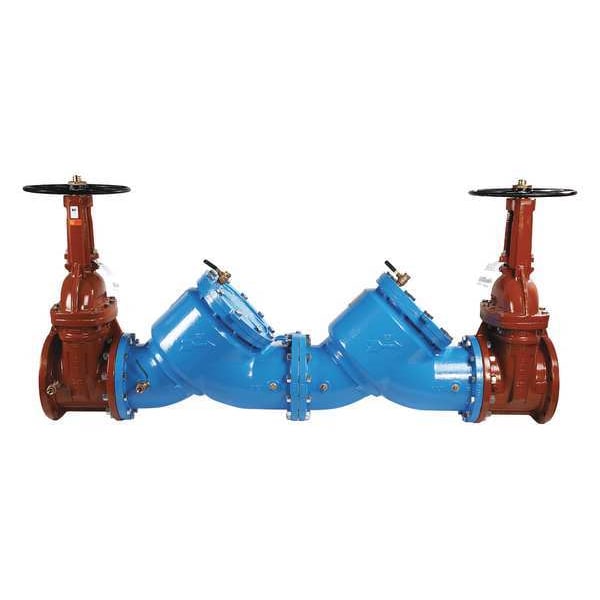

Double Check Valve, Watts709, 8in, Flanged

  • Mfr # LF709-OSY

  • Zoro # G2199410

product price:
$
20,395.99
/ea
Additional $505.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Width
20 1/4 in
Pipe Size
8"
Series
Watts 709
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LF709-OSY
Zoro #
G2199410
UPC #
098268646832
Country of Origin
United States
Item
Double Check Valve Assembly
Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Series
Watts 709
Standards
ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, FM, IAPMO PA31, NSF, UPC, USC Manual
Features
OSY Shutoffs
Max. Temp.
110 Degrees F
Max. Pressure
175 psi
Compliance
ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC
Connection
Flanged Joint
Manufacturer Warranty
1 yr
Connection Type - Side 1
Flange
Mounting Orientation
Horizontal, Vertical
Operating Temperature - Maximum
110 Degrees F
For Media
Water
Includes Flow Meter
No Flow Meter
Backflow Preventer Type
Double Check Assembly (DC)
Seat Material
Stainless Steel
Flow
2,500 gpm
Operating Temperature - Minimum
33 Degrees F
Includes Freeze Sensor
No Freeze Sensor
Maximum Pressure - Operating
175 psi
Shut-Off Valve Included
OSY Gate Valve
Connection Type - Side 2
Flange
Hazard Protection Level
Low Hazard
Includes Strainer
No Strainer
Valve Series
LF709

Description

Double Check Valve Assembly, Series Watts 709, Size 8 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 20-1/4 in., Length 75 in., Height 37-3/4 in., Features OSY Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free
