Shop WATTS

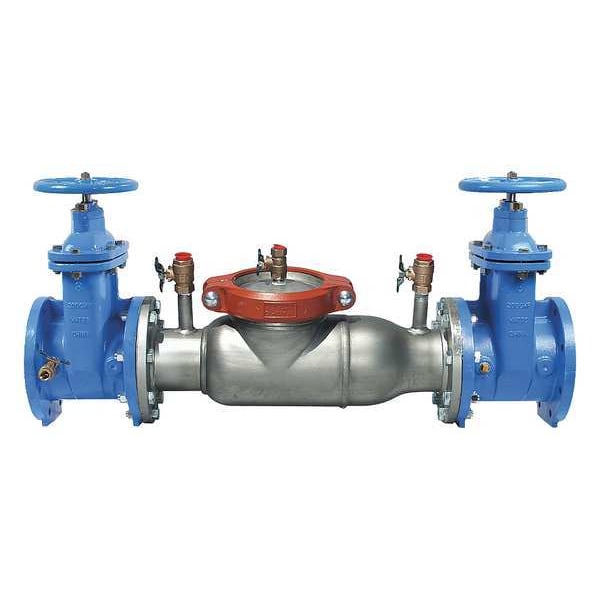

Double Check Valve, Watts774, 3in, 14inH

  • Mfr # 774-NRS

  • Zoro # G2199386

product price:
$
4,476.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Stainless Steel
Temp. Range
33 Degrees to 110 Degrees F
Width
7 1/2 in
Pipe Size
3"
Compliance
ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
774-NRS
Zoro #
G2199386
UPC #
098268878073
Country of Origin
United States
Item
Double Check Valve Assembly
Body Material
Stainless Steel
Temp. Range
33 Degrees to 110 Degrees F
Compliance
ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only)
Max. Pressure
175 psi
Features
NRS Shutoff, Short Lay Length
Series
Watts 774
Connection
Flanged Joint
Max. Temp.
110 Degrees F
Standards
ASSE 1015, AWWA C510-92, CSA B64.5
Backflow Preventer Type
Double Check Assembly (DC)
Connection Type - Side 1
Flange
Includes Strainer
No Strainer
Spring Material
Stainless Steel
Hazard Protection Level
Low Hazard
Includes Freeze Sensor
No Freeze Sensor
Maximum Pressure - Operating
175 psi
Operating Temperature - Minimum
33 Degrees F
For Media
Water
Mounting Orientation
Horizontal, Vertical
Number of Test Ports
4
Operating Temperature - Maximum
110 Degrees F
Shut-Off Valve Included
NRS Gate Valve
Flow
600 gpm
Check Mechanism Material
Thermoplastic
Connection Type - Side 2
Flange
Includes Flow Meter
No Flow Meter
Manufacturer Warranty
1 yr
Valve Series
774

Description

Double Check Valve Assembly, Series Watts 774, Size 3 in., Connection Flanged, Body Material Stainless Steel, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 7-1/2 in., Length 38 in., Height 14 in., Features NRS Shutoff, Short Lay Length, Standards AWWA C510-92, CSA B64.5, Compliance ASSE 1015, FM Approved (4 in. to 10 in. OSY Only) UL Classified (OSY Only)
