Shop WATTS

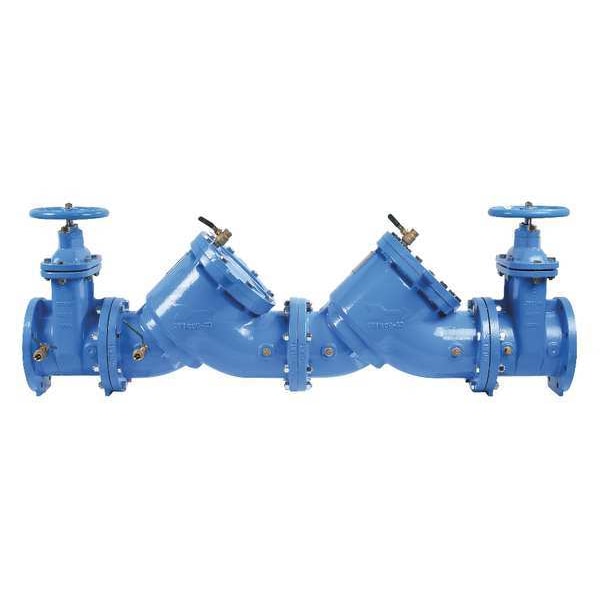

Double CheckValve, Watts709, 23-13/16inH

  • Mfr # LF709-NRS

  • Zoro # G2199465

product price:
$
28,253.99
/ea
Additional $730.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Width
22 3/4 in
Pipe Size
10"
Height
23 13/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LF709-NRS
Zoro #
G2199465
UPC #
098268646795
Country of Origin
United States
Item
Double Check Valve Assembly
Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Compliance
ASSE 1015, CSA B64.5, FM Approved, Lead Free, UL Classified, UPC, USC
Series
Watts 709
Max. Pressure
175 psi
Connection
Flanged Joint
Max. Temp.
110 Degrees F
Features
NRS Shutoffs
Standards
ASSE 1015, AWWA C510-92, CSA B64.5, cULus Classified, IAPMO PA31, NSF, UPC, USC Manual
Flow
4,000 gpm
Seat Material
Stainless Steel
Mounting Orientation
Horizontal, Vertical
For Media
Water
Backflow Preventer Type
Double Check Assembly (DC)
Hazard Protection Level
Low Hazard
Manufacturer Warranty
1 yr
Maximum Pressure - Operating
175 psi
Connection Type - Side 1
Flange
Connection Type - Side 2
Flange
Shut-Off Valve Included
NRS Gate Valve
Includes Freeze Sensor
No Freeze Sensor
Includes Strainer
No Strainer
Includes Flow Meter
No Flow Meter
Operating Temperature - Minimum
33 Degrees F
Operating Temperature - Maximum
110 Degrees F
Valve Series
LF709

Description

Double Check Valve Assembly, Series Watts 709, Size 10 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 22-3/4 in., Length 90 in., Height 23-13/16 in., Features NRS Shutoffs, Standards AWWA C510-92, IAPMO PA 31, USC Manual for Cross Connection Control 8th Edition, Compliance ASSE 1015, UPC, CSA B64.5, UL Classified, FM Approved, USC, Lead Free
