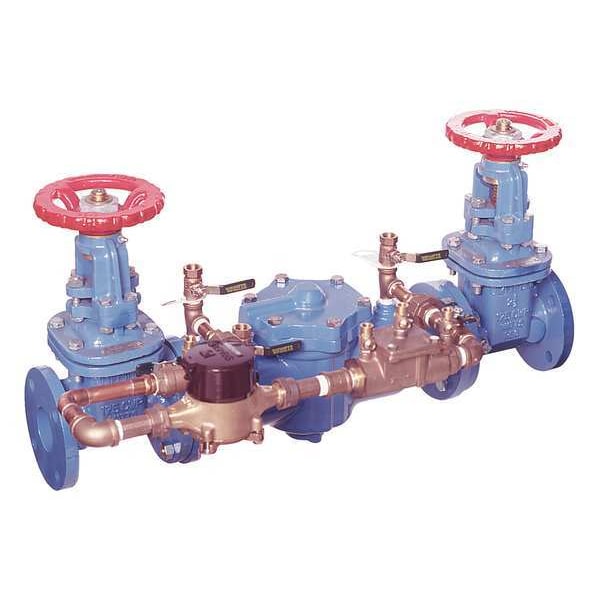

DoubleCheckDetector, 007, 2-1/2in, 16-3/8

  • Mfr # 007DCDAOSY-CFM

  • Zoro # G2199255

product price:  $7,439.99
/ea
Additional $90.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Width
16 5/16 in
Pipe Size
2-1/2"
Features
Detector Assembly with OSY Shutoff, cu ft m, Single Top Entry
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
007DCDAOSY-CFM
Zoro #
G2199255
UPC #
098268316827
Country of Origin
United States

Dimensions

Width
16 5/16 in
Pipe Size
2-1/2"
Height
16 3/8 in
Size
2 1/2 in
Length
33 1/4 in
Overall Height
16.38 in
Overall Width
12.31 in
Connection Size - Side 2
2 1/2 in
Overall Length
33.25 in
Nominal Valve Size
2 in
Connection Size - Side 1
2 in

Details

Item
Double Check Detector Assembly
Body Material
Cast Iron
Temp. Range
33 Degrees to 110 Degrees F
Features
Detector Assembly with OSY Shutoff, cu ft m, Single Top Entry
Compliance
ASSE 1048, FCCCHR-USC, UL Classified (OSY Only)
Series
Watts 007
Standards
ASSE 1048, AWWA C510, CSA B64.5, cULus Classified, IAPMO PS31
Max. Temp.
110 Degrees F
Max. Pressure
175 psi
Connection
Swivel Joint
Seat Material
Bronze, Stainless Steel
Flow
250 gpm
Spring Material
Stainless Steel
Backflow Preventer Type
Double Check Detector Assembly (DCDA)
For Media
Water
Connection Type - Side 1
Swivel Joint
Maximum Pressure - Operating
175 psi
Connection Type - Side 2
Swivel Joint
Includes Flow Meter
Includes CFM Flow Meter
Manufacturer Warranty
1 yr
Shut-Off Valve Included
OSY Gate Valve
Operating Temperature - Minimum
33 Degrees F
Mounting Orientation
Horizontal, Vertical
Number of Test Ports
4
Includes Freeze Sensor
No Freeze Sensor
Includes Strainer
No Strainer
Operating Temperature - Maximum
110 Degrees F
Hazard Protection Level
Low Health Hazard
Valve Series
007DCDA

Description

Double Check Detector Assembly, Series Watts 007, Size 2-1/2 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 16-5/16 in., Length 33-1/4 in., Height 16-3/8 in., Features Detector Assembly with OSY Shutoff, cu. ft. m, Single Top Entry, Standards AWWA Standard C510, CSA B64.5, IAPMO PS 31, Compliance ASSE 1048, UL Classified (OSY Only), FCCCHR-USC

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
