Shop POWERS

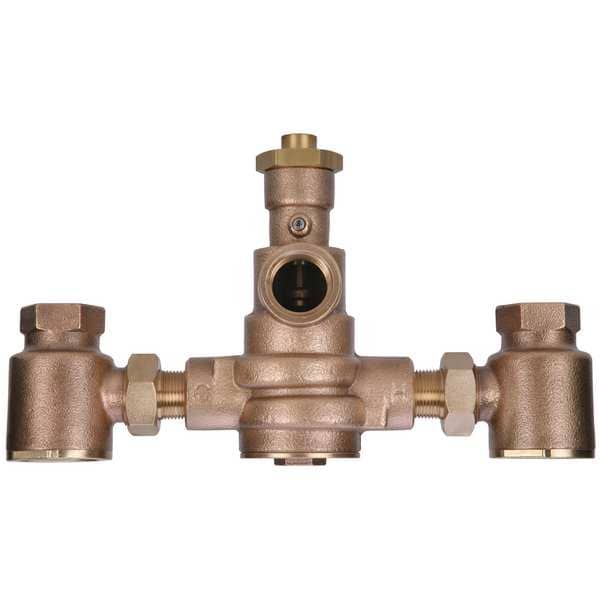

Mixing Valve, Brass, 64 gpm

  • Mfr # 3/4 x 1 LFMM432-1
  • Zoro # G4360553
product price:
$
1,722.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/4 in
Outlet Type
FNPT
Flow Rate
64 gpm
Inlet Type
FNPT
Max. Pressure
125 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3/4 x 1 LFMM432-1
Zoro #
G4360553
UPC #
098268785746
Country of Origin
United States
Item
Hot Water Master Mixing Valve
Outlet Type
FNPT
Flow Rate
64 gpm
Inlet Type
FNPT
Max. Pressure
125 psi
Temp. Range
90 Degrees to 160 Degrees F
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
Inlet Temperature (Cold)
40 Degrees to 80 Degrees F
Body Material
Cast Bronze
Standards
ASSE 1017, CSA B125
Material of Construction
Brass
Connection
FNPT
Valve Type
Hot Water Master
Coefficient of Volume (Cv)
9.49
Inlet Connection Type - Cold
NPT
Inlet Temperature - Maximum Cold
80 Degrees F
Inlet Connection Gender - Cold
Female
Outlet Connection Type
NPT
Inlet Connection Type - Hot
NPT
Inlet Temperature - Minimum Cold
40 Degrees F
Includes Temperature Gauge
Temperature Gauge Not Included
For Media
Hot Water, Water
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Maximum Hot
180 Degrees F
Operating Temperature - Maximum Outlet
160 Degrees F
Operating Temperature - Minimum Outlet
90 Degrees F
Operating Pressure - Maximum
125 psi

Description

Hot Water Master Mixing Valve, Body Material Cast Bronze, Flow Rate 64 gpm, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 1 in, Temp. Range 90 Degrees to 160 Degrees F, Max. Pressure 125 psi, Overall Height 7 1/4 in, Overall Width 11 3/8 in, Inlet Temperature (Cold) 40 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, Standards ASSE 1017, CSA B125
