DoubleCheckDetector, 709DCDA, 6in, Flanged
Mfr # 709DCDA-OSY-CFM
Zoro # G2199185
product price: $8,955.99
/ea
Item requires special delivery charges. A $380.00 per item surcharge will be applied.
Key Features
Body Material
Cast iron
Temp. Range
33 Degrees to 110 Degrees F
Width
23 1/2 in
Pipe Size
6"
Standards
AWWA Standard C510
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
709DCDA-OSY-CFM
Zoro #
G2199185
UPC #
098268023879
Country of Origin
United States
Dimensions
Width
23 1/2 in
Pipe Size
6"
Length
62 1/2 in
Height
30 1/8 in
Size
6 in
Overall Height
34.63 in
Connection Size - Side 2
6 in
Overall Length
62.5 in
Overall Width
23.5 in
Check Valve Length
41 1/2 in
Connection Size - Side 1
6 in
Nominal Valve Size
6 in
Description

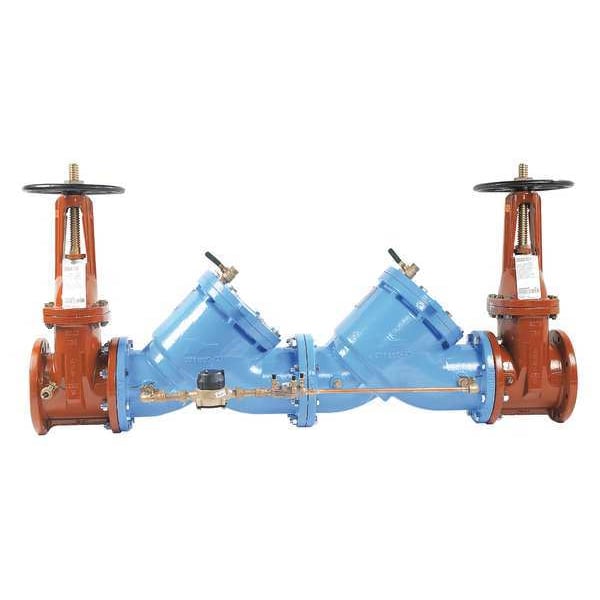

Double Check Detector Assembly, Series Watts 709DCDA, Size 6 in., Connection Flanged, Body Material Cast Iron, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 23-1/2 in., Length 62-1/2 in., Height 30-1/8 in., Features Detector Assembly with OSY Shutoffs, cu. ft. m, Standards AWWA Standard C510, Compliance CSA B.64, UL Classified, FM Approved, UPC, ASSE 1048, FCCCHR-USC
Restrictions
This is a restricted item in the USA. It cannot be used for potable water applications.
