Shop WATTS

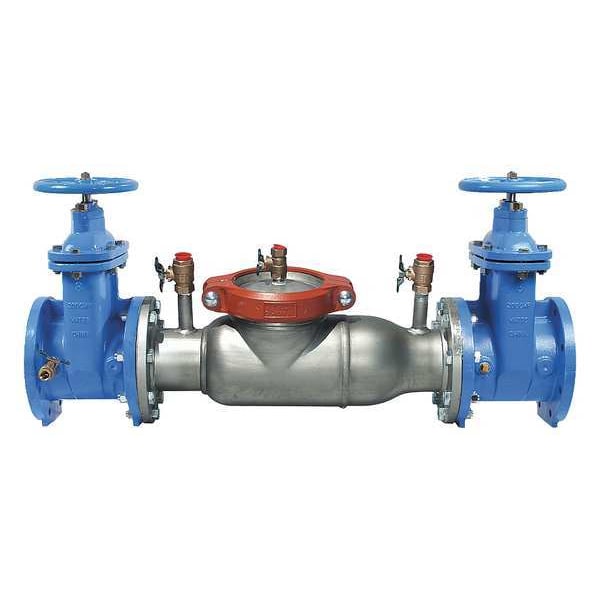

DoubleCheckValve, W774, 2-1/2in, NRSShutoff

  • Mfr # 774-NRS

  • Zoro # G2199395

product price:
$
4,366.99
/ea
Additional $95.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Stainless Steel
Temp. Range
33 Degrees to 110 Degrees F
Width
7 in
Pipe Size
2-1/2"
Length
38 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
774-NRS
Zoro #
G2199395
UPC #
098268877991
Country of Origin
United States

Dimensions

Width
7 in
Pipe Size
2-1/2"
Length
38 in
Size
2 1/2 in
Height
12 7/8 in
Connection Size - Side 2
2 1/2 in
Overall Width
7 in
Connection Size - Side 1
2 1/2 in
Check Valve Length
22 in
Overall Length
37 in
Nominal Valve Size
2 1/2 in
Overall Height
12.88 in
Wire Rope Length
37 in

Details

Item
Double Check Valve Assembly
Body Material
Stainless Steel
Temp. Range
33 Degrees to 110 Degrees F
Standards
ASSE 1015, AWWA C510-92, CSA B64.5
Features
NRS Shutoff, Short Lay Length
Compliance
ASSE 1015, FM Approved (4 in to 10 in OSY Only) UL Classified (OSY Only)
Series
Watts 774
Connection
Flanged Joint
Max. Pressure
175 psi
Max. Temp.
110 Degrees F
Maximum Pressure - Operating
175 psi
For Media
Water
Connection Type - Side 2
Flange
Hazard Protection Level
Low Hazard
Number of Test Ports
4
Manufacturer Warranty
1 yr
Includes Strainer
No Strainer
Includes Flow Meter
No Flow Meter
Mounting Orientation
Horizontal, Vertical
Connection Type - Side 1
Flange
Shut-Off Valve Included
NRS Gate Valve
Backflow Preventer Type
Double Check Assembly (DC)
Check Mechanism Material
Thermoplastic
Spring Material
Stainless Steel
Operating Temperature - Maximum
110 Degrees F
Flow
525 gpm
Operating Temperature - Minimum
33 Degrees F
Includes Freeze Sensor
No Freeze Sensor
Valve Series
774

Description

Double Check Valve Assembly, Series Watts 774, Size 2-1/2 in., Connection Flanged, Body Material Stainless Steel, Temp. Range 33 to 110 Degrees F, Max. Temp. 110 Degrees F, Max. Pressure 175 psi, Width 7 in., Length 38 in., Height 12-7/8 in., Features NRS Shutoff, Short Lay Length, Standards AWWA C510-92, CSA B64.5, Compliance ASSE 1015, FM Approved (4 in. to 10 in. OSY Only) UL Classified (OSY Only)
