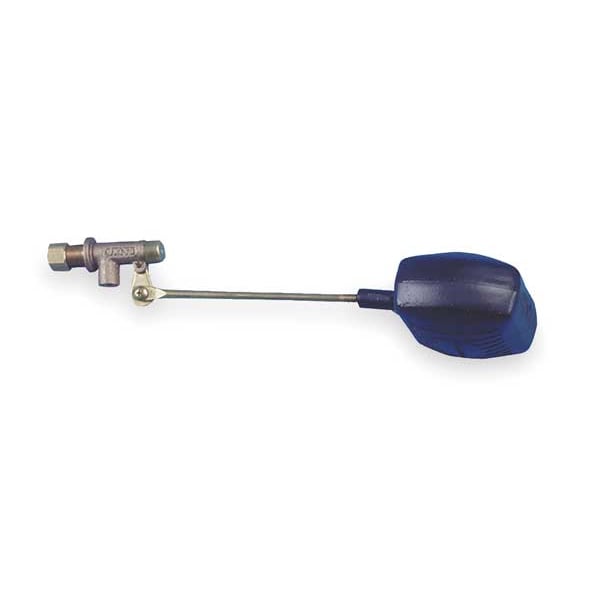

Evaporative Cooler Valve and Float

Mfr # STD-CA
Zoro # G0507787

41.55

Key Features

Pipe Size

3/8"

Length and Mounting Size

8" x 3/4"

Connection Type

MNPT

Body Material

Bronze

Float Material

Polyethylene

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: STD-CA
Zoro #: G0507787
UPC #: 098268435658
Country of Origin: Taiwan, Province of China

Dimensions

Pipe Size: 3/8"
Length and Mounting Size: 8" x 3/4"
Rod Length: 2 in
Size: 3/8"
Nominal Valve Size: 3/8 in
Connection Size - Side 2: 1/8 in
Connection Size - Side 1: 3/8 in

Details

Item: Float Valve Kit
Connection Type: MNPT
Body Material: Bronze
Float Material: Polyethylene
Rod Material: Brass
Max. Pressure: 100 psi
Valve Flow - Pressure (2): 100 psi
Valve Flow - Flow (1): 1.5 gpm
Valve Material: Bronze
Valve Flow - Flow (2): 3 gpm
Max. Temp.: 140 Degrees F
Valve Flow - Pressure (1): 50 psi
Rod Thread: 1/4"-20
Mounting: Bulkhead
Flow Rate: 1.5 gpm @ 50 psi, 3 gpm @ 100 psi
Valve Body Style: Straight
Connection Gender - Side 1: Male
Includes Float and Rod: Float and Rod Included
Connection Type - Side 2: IPS
Operating Temperature - Maximum: 140 Degrees F
Maximum Pressure - Operating: 100 psi
Arm Adjustability: Adjustable
Connection Gender - Side 2: Female
For Media: Water
Seal Material: Buna-N
Connection Type - Side 1: IPS
Float Shape: Rectangular
Seat Style: Single Seated
Valve Series: STD-CA

Description

Float Valve Assembly, Mounting Bulkhead, Size 3/8 in, Connection Type MNPT, Rod Thread 1/4 In.-20, Rod Length 2 in, Rod Material Brass, Body Material Bronze, Valve Flow - Pressure (1) 50 psi, Valve Flow - Flow (1) 1.5 gpm, Valve Flow - Pressure (2) 100 psi, Valve Flow - Flow (2) 3 gpm, Max. Pressure 100 psi, Max. Temp. 140 Degrees F, Length and Mounting Size 8 in x 3/4 in, Valve Material Bronze, Float Material Polyethylene
