Shop WATTS

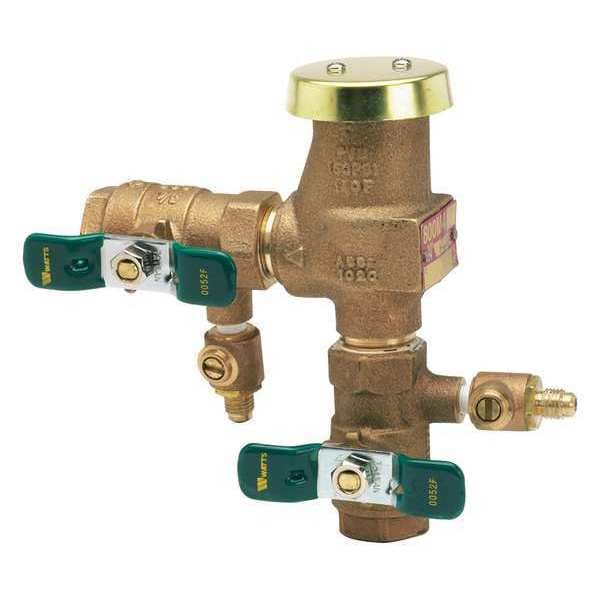

Freeze Resistant Vacuum Breaker, 6-1/4inH

  • Mfr # 800M4-FR

  • Zoro # G1686539

product price:
$
404.99
/ea
Free Shipping & Returns

Key Features

Body Material
Cast Bronze
Size
1/2"
Connection Type
FNPT
Max. Pressure
150 psi
Seal
Silicone
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
800M4-FR
Zoro #
G1686539
UPC #
098268823578
Country of Origin
United States

Dimensions

Size
1/2"
Height
6 1/4 in
Width
6 1/8 in
Pipe Size
1/2"
Connection Size - Side 1
1/2 in
Overall Height
6.25 in
Nominal Valve Size
1/2 in
Overall Width
6.13 in
Connection Size - Side 2
1/2 in

Details

Body Material
Cast Bronze
Connection Type
FNPT
Max. Pressure
150 psi
Seal
Silicone
Item
Freeze Resistant Vacuum Breaker
Compliance
ASSE 1020, CSA B64.12, UPC, USC
Material of Construction
Cast Bronze
Standards
ASSE 1020, cCSAus, IAPMO, UPC, USC-FCCCHR
Temp. Range
33 Degrees to 140 Degrees F
Connection Gender - Side 1
Female
Mounting Orientation
Vertical
Flow
15 gpm
Hazard Protection Level
High Hazard
Manufacturer Warranty
1 yr
Seal Material
Rubber
Maximum Pressure - Operating
150 psi
Shut-Off Valve Included
Ball Valve
Operating Temperature - Minimum
33 Degrees F
Handle Type
Tee
Connection Gender - Side 2
Female
Operating Temperature - Maximum
140 Degrees F
Includes Spill Resistance
Not Spill Resistant
Handle Material
Stainless Steel
For Media
Water
Includes Freeze Sensor
Freeze Sensor Included
Spring Material
Stainless Steel
Seat Material
Plastic
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Valve Series
800M4FR

Description

Freeze Resistant Vacuum Breaker, Size 1/2 in., Connection Type FNPT, Material of Construction Cast Bronze, Seal Silicone, Max. Pressure 150 psi, Temp. Range 33 Degrees to 140 Degrees F, Height 6-1/4 in., Width 6-1/8 in., Standards ANSI, IAPMO, USC, Compliance ASSE 1020, CSA B64.12, UPC, USC
