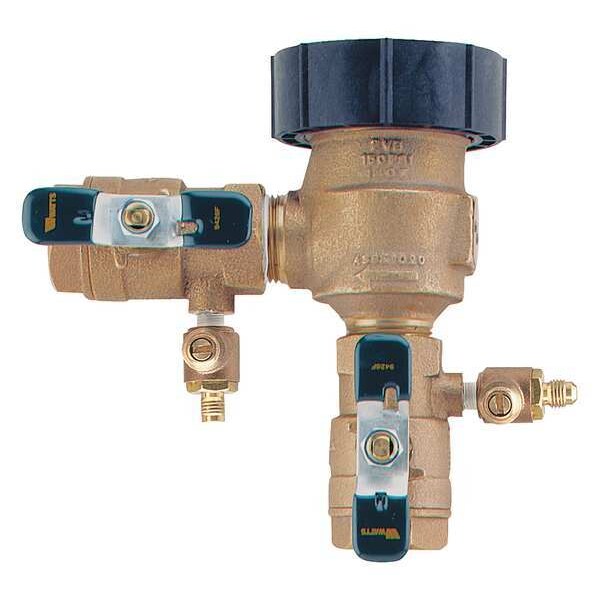

Watts Freeze Resistant Vacuum Breaker, 9-1/2inH 800M4-FR - main

Freeze Resistant Vacuum Breaker, 9-1/2inH

  • Mfr # 800M4-FR

  • Zoro # G1686496

product price: $1,042.99
/ea
Free Shipping & Returns

Key Features

Body Material
Cast Bronze
Size
1 1/2"
Connection Type
FNPT
Max. Pressure
150 psi
Seal
Silicone
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
800M4-FR
Zoro #
G1686496
UPC #
098268798654
Country of Origin
United States

Dimensions

Size
1 1/2"
Width
9 1/4 in
Height
9 1/2 in
Pipe Size
1 1/2"
Nominal Valve Size
1 1/2 in
Connection Size - Side 2
1 1/2 in
Connection Size - Side 1
1 1/2 in
Overall Width
9.25 in
Overall Height
9.5 in

Details

Body Material
Cast Bronze
Connection Type
FNPT
Max. Pressure
150 psi
Seal
Silicone
Item
Freeze Resistant Vacuum Breaker
Compliance
ASSE 1020, CSA B64.12, UPC, USC
Material of Construction
Cast Bronze
Standards
ANSI, IAPMO, USC
Temp. Range
33 Degrees to 140 Degrees F
Seal Material
Rubber
Mounting Orientation
Vertical
Manufacturer Warranty
1 yr
Shut-Off Valve Included
Ball Valve
Operating Temperature - Minimum
33 Degrees F
Seat Material
Plastic
Connection Gender - Side 1
Female
For Media
Water
Hazard Protection Level
High Health Hazard
Handle Type
Lever
Includes Freeze Sensor
Freeze Sensor Included
Maximum Pressure - Operating
150 psi
Includes Spill Resistance
Not Spill Resistant
Flow
120 gpm
Operating Temperature - Maximum
140 Degrees F
Connection Type - Side 2
NPT
Handle Material
Stainless Steel
Connection Gender - Side 2
Female
Spring Material
Stainless Steel
Connection Type - Side 1
NPT
Valve Series
800M4FR

Description

Freeze Resistant Vacuum Breaker, Size 1-1/2 in., Connection Type FNPT, Material of Construction Cast Bronze, Seal Silicone, Max. Pressure 150 psi, Temp. Range 33 Degrees to 140 Degrees F, Height 9-1/2 in., Width 9-1/4 in., Standards ANSI, IAPMO, USC, Compliance ASSE 1020, CSA B64.12, UPC, USC

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
