  11. Freeze Resistant Vacuum Breaker, 9inH

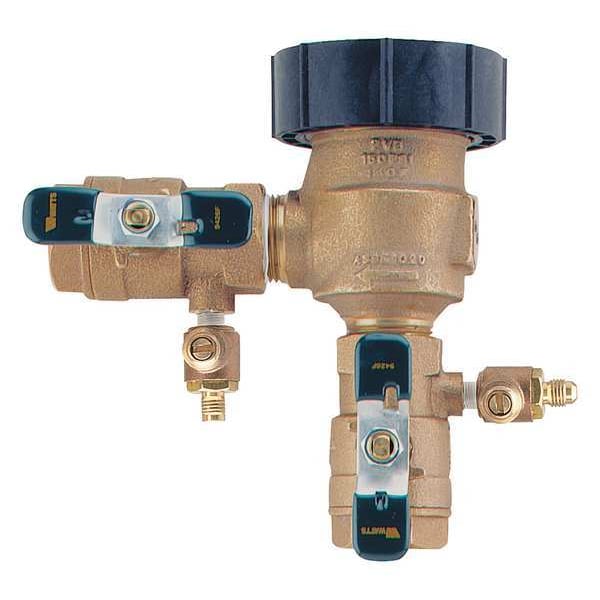

Watts Freeze Resistant Vacuum Breaker, 9inH 800M4-FR - main

Freeze Resistant Vacuum Breaker, 9inH

  • Mfr # 800M4-FR

  • Zoro # G1686505

product price: $846.99
/ea
Free Shipping & Returns

Key Features

Body Material
Cast Bronze
Size
1 1/4"
Connection Type
FNPT
Max. Pressure
150 psi
Seal
Silicone
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
800M4-FR
Zoro #
G1686505
UPC #
098268798647
Country of Origin
United States

Dimensions

Size
1 1/4"
Width
8 7/8 in
Height
9 in
Pipe Size
1 1/4"
Overall Width
8.87 in
Connection Size - Side 1
1 1/4 in
Overall Height
9 in
Connection Size - Side 2
1 1/4 in
Nominal Valve Size
1 1/4 in

Details

Body Material
Cast Bronze
Connection Type
FNPT
Max. Pressure
150 psi
Seal
Silicone
Item
Freeze Resistant Vacuum Breaker
Standards
ANSI, IAPMO, USC
Compliance
ASSE 1020, CSA B64.12, UPC, USC
Temp. Range
33 Degrees to 140 Degrees F
Material of Construction
Cast Bronze
Spring Material
Stainless Steel
Seal Material
Rubber
Manufacturer Warranty
1 yr
Handle Material
Stainless Steel
Operating Temperature - Maximum
140 Degrees F
Handle Type
Lever
Connection Gender - Side 2
Female
For Media
Water
Seat Material
Plastic
Maximum Pressure - Operating
150 psi
Flow
80 gpm
Mounting Orientation
Vertical
Hazard Protection Level
High Health Hazard
Includes Spill Resistance
Not Spill Resistant
Connection Type - Side 1
NPT
Connection Type - Side 2
NPT
Shut-Off Valve Included
Ball Valve
Includes Freeze Sensor
Freeze Sensor Included
Connection Gender - Side 1
Female
Operating Temperature - Minimum
33 Degrees F
Valve Series
800M4FR

Description

Freeze Resistant Vacuum Breaker, Size 1-1/4 in., Connection Type FNPT, Material of Construction Cast Bronze, Seal Silicone, Max. Pressure 150 psi, Temp. Range 33 Degrees to 140 Degrees F, Height 9 in., Width 8-7/8 in., Standards ANSI, IAPMO, USC, Compliance ASSE 1020, CSA B64.12, UPC, USC

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
