Shop WATTS

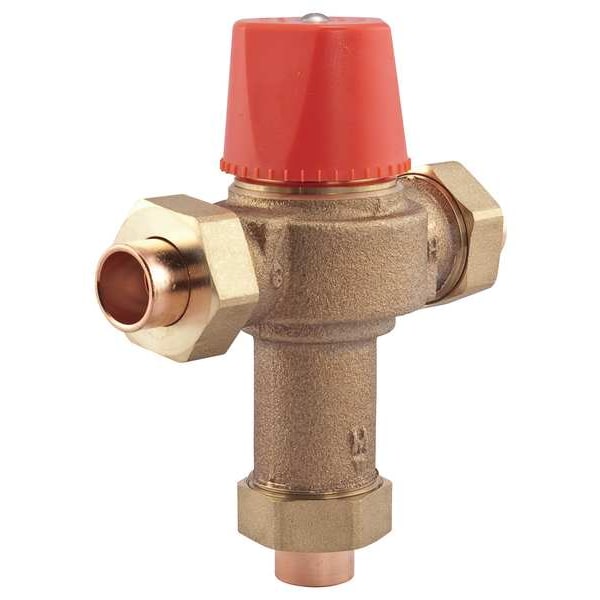

Mixing Valve, Brass, 0.5 to 23 gpm

  • Mfr # 3/4 LF 1170-US

  • Zoro # G1626161

product price:
$
360.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/4 in
Outlet Type
Solder
Flow Rate
0.5 to 23 gpm
Inlet Type
Solder
Overall Width
4 7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3/4 LF 1170-US
Zoro #
G1626161
UPC #
098268517019
Country of Origin
United States
Item
Thermostatic Mixing Valve
Outlet Type
Solder
Flow Rate
0.5 to 23 gpm
Inlet Type
Solder
Temp. Range
90 Degrees to 160 Degrees F
Body Material
Brass
Max. Pressure
150 psi
Inlet Temperature (Hot)
120 Degrees to 200 Degrees F
Standards
ASSE 1017, B125, CSA, IAPMO, UPC
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
Includes
Check Valves, Integral Filter Washers, Locking Mechanism, Solid Wax Hydraulic Principle Thermostat
Material of Construction
Brass
Connection
Solder
Valve Type
Thermostatic
Inlet Connection Type - Cold
Socket
Inlet Temperature - Maximum Hot
200 Degrees F
Inlet Connection Type - Hot
Socket
For Media
Hot Water, Water
Operating Temperature - Maximum Outlet
160 Degrees F
Operating Pressure - Maximum
150 psi
Outlet Connection Type
Socket
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Cold
40 Degrees F
Operating Temperature - Minimum Outlet
90 Degrees F
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Temperature - Maximum Cold
85 Degrees F

Description

Thermostatic Mixing Valve, Body Material Brass, Flow Rate 0.5 to 23 gpm, Inlet Type Solder, Outlet Type Solder, Inlet Size 3/4 in, Outlet Size 3/4 in, Temp. Range 90 Degrees to 160 Degrees F, Max. Pressure 150 psi, Overall Height 5 7/16 in, Overall Width 4 7/8 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 200 Degrees F, Includes Check Valves, Integral Filter Washers, Locking Mechanism, Solid Wax Hydraulic Principle Thermostat
