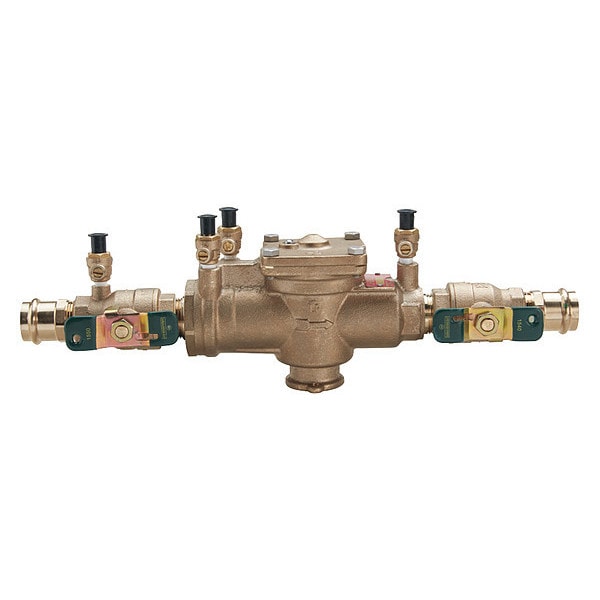

Watts Reduced Pressure Zone Assembly, 1/2in 1/2 LF009-QT-PRESS - main

Reduced Pressure Zone Assembly, 1/2in

  • Mfr # 1/2 LF009-QT-PRESS

  • Zoro # G3919750

product price: $752.99
/ea
Free Shipping & Returns

Key Features

Body Material
Lead Free Bronze
Temp. Range
33 Degrees to 180 Degrees F
Width
7"
Pipe Size
1/2"
Series
Dagr
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1/2 LF009-QT-PRESS
Zoro #
G3919750
UPC #
-
Country of Origin
United States

Dimensions

Width
7"
Pipe Size
1/2"
Size
1/2"
Height
4-3/4"
Length
11-1/2"
Overall Height
5.88 in
Connection Size - Side 1
1/2 in
Connection Size - Side 2
1/2 in
Nominal Valve Size
1/2 in
Check Valve Length
5 1/2 in
Overall Length
10 in
Overall Width
7 in

Details

Item
Reduced Pressure Zone Assembly
Body Material
Lead Free Bronze
Temp. Range
33 Degrees to 180 Degrees F
Series
Dagr
Max. Pressure
175 psi
Max. Temp.
180 Degrees F
Features
Lead Free
Connection
FNPT
Compliance
ASSE, CSA, 3-UL Classified
Standards
ASSE 1013, AWWA C511, CSA B64.4, IAPMO File No. 1563, NSF, UPC, USC-FCCCHR
Seat Material
Stainless Steel
Flow
15 gpm
Connection Type - Side 2
Press
Includes Freeze Sensor
No Freeze Sensor
Includes Flow Meter
No Flow Meter
Includes Flood Protection
No Flood Protection
Maximum Pressure - Operating
175 psi
Connection Type - Side 1
Press
Manufacturer Warranty
1 yr
Includes Strainer
No Strainer
Hazard Protection Level
High Health Hazard
Number of Test Ports
4
Shut-Off Valve Included
Ball Valve
Operating Temperature - Minimum
33 Degrees F
Backflow Preventer Type
Reduced Pressure Assembly (RP)
For Media
Water
Operating Temperature - Maximum
180 Degrees F
Handle Type
Tee
Valve Series
LF009

Description

Reduced Pressure Zone Assembly,1/2in
