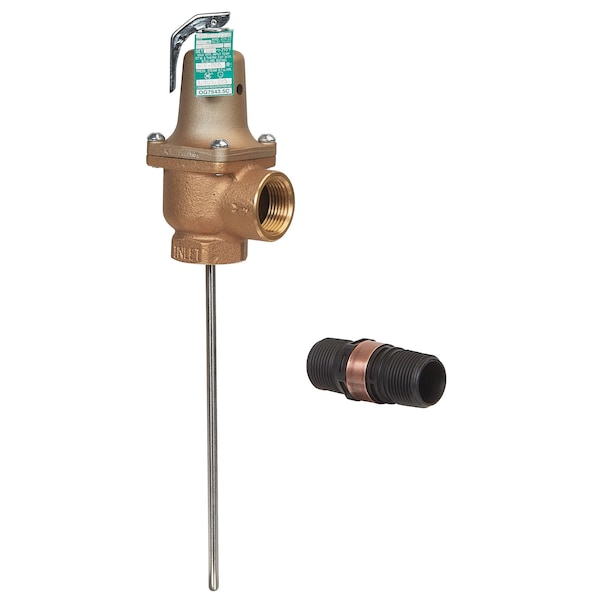

Temperature and Pressure Relief Valve
Mfr # 1 140X-6 150/210 FS
Zoro # G510565751
product price:Â $314.99
/ea
Free Shipping & Returns
Key Features
Body Material
Bronze
Body Height
5 3/4 in
Body Width
3 in
BtuH
670,000 BtuH
Standards
ANSI Z21.22/CSA 4.4, ASME Code HV, CSA, NBBI, NSF/ANSI/CAN 372
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 1 140X-6 150/210 FS
- Zoro #
- G510565751
- UPC #
- 098268564167
- Country of Origin
- United States
Dimensions
- Body Height
- 5 3/4 in
- Body Width
- 3 in
- Outlet Connection Size
- 1 in
- Inlet Connection Size
- 1 in
- Thermostat Length
- 6 in
Details
- Body Material
- Bronze
- Item
- Temperature and Pressure Relief Valve
- BtuH
- 670,000 BtuH
- Standards
- ANSI Z21.22/CSA 4.4, ASME Code HV, CSA, NBBI, NSF/ANSI/CAN 372
- Factory Set Pressure
- 150 psi
- Auto Re-Seating
- Yes
- Application
- Water Heaters
- Operating Temperature - Maximum
- 210 Degrees F
- ASME Section Code
- Section XIII
- Inlet Connection Gender
- Female
- Outlet Connection Gender
- Female
- For Media
- Hot Water
- Preset Temperature
- 210 Degrees F
- Operating Pressure - Maximum
- 112 psi
- Inlet Connection Type
- NPTF
- Outlet Connection Type
- NPTF
Description
Temperature and Pressure Relief Valve, Thermostat Length 6 in, Body Height 5 3/4 in, 670,000 BtuH BtuH, Factory Set Pressure 150 psi, Auto Re-Seating Yes, Body Material Bronze, Spring Material Not Applicable, Body Width 3 in, Standards ANSI Z21.22/CSA 4.4, ASME Code HV, CSA, NBBI, NSF/ANSI/CAN 372
Documents & Resources
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
