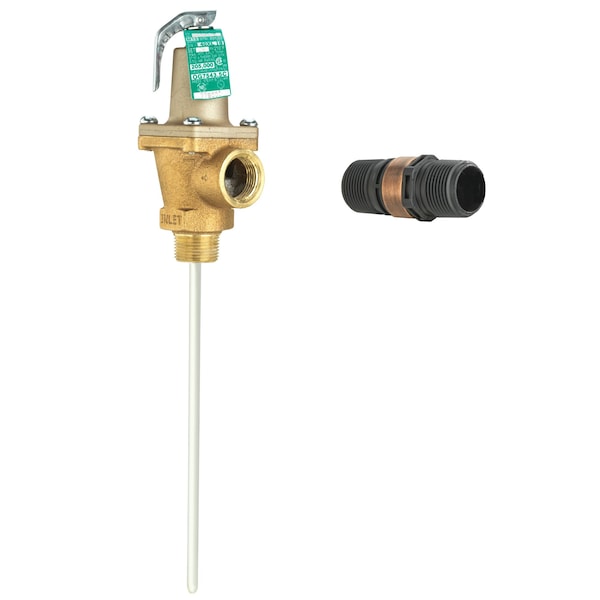

Temperature and Pressure Relief Valve
Mfr # 3/4 LF40XL-5 150/210FS
Zoro # G610565828
product price:Â $247.99
/ea
Free Shipping & Returns
Key Features
Body Material
Bronze
Body Width
2 5/8 in
Factory Set Pressure
150 psi
Application
Water Heaters
BtuH
205,000 BtuH
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 3/4 LF40XL-5 150/210FS
- Zoro #
- G610565828
- UPC #
- 098268566727
- Country of Origin
- United States
Dimensions
- Body Width
- 2 5/8 in
- Body Height
- 5 5/8 in
- Outlet Connection Size
- 3/4 in
- Thermostat Length
- 5 in
- Inlet Connection Size
- 3/4 in
Details
- Body Material
- Bronze
- Item
- Temperature and Pressure Relief Valve
- Factory Set Pressure
- 150 psi
- Application
- Water Heaters
- BtuH
- 205,000 BtuH
- Auto Re-Seating
- Yes
- Standards
- ANSI Z21.22/CSA 4.4, ASME Code HV, CSA, NBBI, NSF/ANSI/CAN 372
- Operating Temperature - Maximum
- 210 Degrees F
- For Media
- Hot Water
- Inlet Connection Gender
- Male
- Outlet Connection Gender
- Female
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
- Operating Pressure - Maximum
- 112 psi
- ASME Section Code
- Section XIII
- Preset Temperature
- 210 Degrees F
Description
Temperature and Pressure Relief Valve, Thermostat Length 5 in, Body Height 5 5/8 in, 205,000 BtuH BtuH, Factory Set Pressure 150 psi, Auto Re-Seating Yes, Body Material Bronze, Spring Material Not Applicable, Body Width 2 5/8 in, Standards ANSI Z21.22/CSA 4.4, ASME Code HV, CSA, NBBI, NSF/ANSI/CAN 372
Documents & Resources
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
