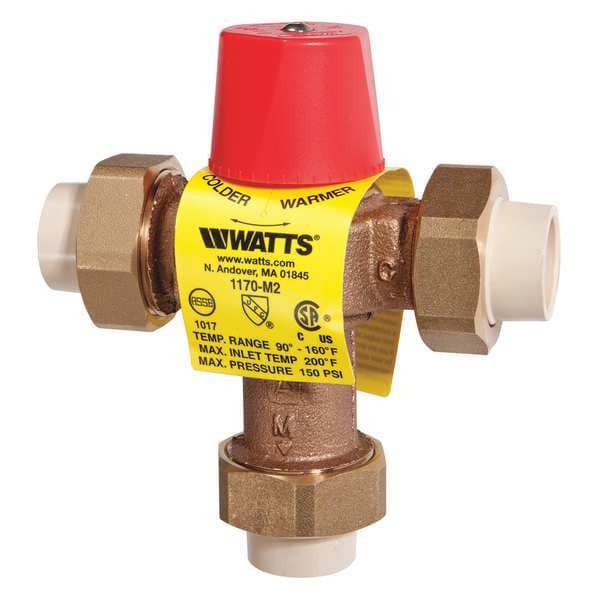

Temperature Control Valve, 3/4 in.
- Mfr # 0006273
- Zoro # G0064891
product price:Â
$
218.99
/ea
Free Shipping & Returns
Key Features
Inlet Size
3/4 in
Outlet Type
Solvent Weld
Flow Rate
23 gpm
Inlet Type
Solvent Weld
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 0006273
- Zoro #
- G0064891
- UPC #
- -
- Country of Origin
- United States
- Item
- Thermostatic Mixing Valve
- Outlet Type
- Solvent Weld
- Flow Rate
- 23 gpm
- Inlet Type
- Solvent Weld
- Inlet Temperature (Hot)
- 120 Degrees to 180 Degrees F
- Temp. Range
- 90 Degrees to 160 Degrees F
- Inlet Temperature (Cold)
- 40 Degrees to 85 Degrees F
- Standards
- ASSE 1017, B125, CSA, IAMPO, UPC
- Max. Pressure
- 150 psi
- Body Material
- Copper Silicon Alloy
- Compliance
- CSA Certified B125 and ASSE 1017, IAMPO and UPC Listed
- For Use With
- Potable Water
- Valve Type
- Thermostatic
- Outlet Connection Type
- Solvent Weld
- Inlet Temperature - Maximum Hot
- 180 Degrees F
- Operating Temperature - Maximum Outlet
- 160 Degrees F
- Includes Temperature Gauge
- Temperature Gauge Not Included
- Operating Temperature - Minimum Outlet
- 90 Degrees F
- Inlet Temperature - Minimum Hot
- 120 Degrees F
- Inlet Temperature - Maximum Cold
- 85 Degrees F
- Inlet Temperature - Minimum Cold
- 40 Degrees F
- Operating Pressure - Maximum
- 150 psi
- For Media
- Water
Dimensions
- Inlet Size
- 3/4 in
- Outlet Size
- 3/4 in
- Overall Height
- 5 9/16 in
- Overall Width
- 5 1/4 in
- Overall Length
- 5 1/4 in
- Inlet Connection Size - Cold
- 3/4 in
- Outlet Connection Size
- 3/4 in
- Inlet Connection Size - Hot
- 3/4 in
- Wire Rope Length
- 5 1/4 in
- Length
- 5 1/4 in
Description
Thermostatic Mixing Valve, Body Material Copper Silicon Alloy, Flow Rate 23 gpm, Inlet Type Solvent Weld, Outlet Type Solvent Weld, Inlet Size 3/4 in, Outlet Size 3/4 in, Temp. Range 90 Degrees to 160 Degrees F, Max. Pressure 150 psi, Overall Height 5 9/16 in, Overall Width 5 1/4 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Potable Water, Standards ASSE 1017, B125, CSA, IAMPO, UPC
