Shop WATTS

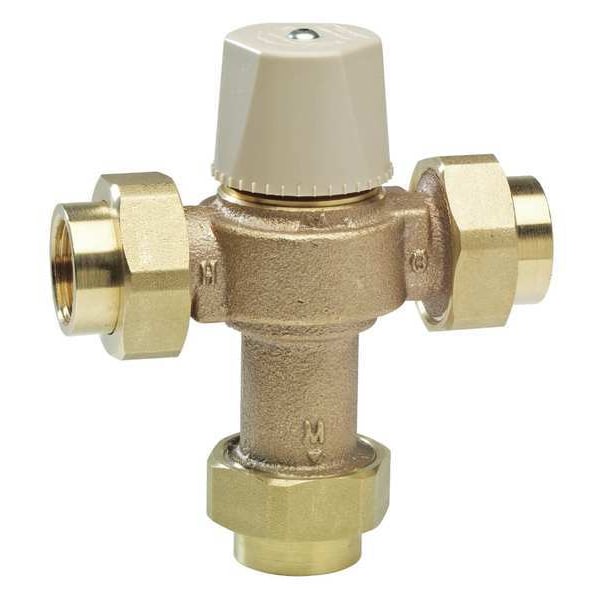

Thermostatic Mixing Valve, 1 in.

  • Mfr # LFMMV-M1-UT

  • Zoro # G6803133

product price:
$
510.85
/ea
Free Shipping & Returns

Key Features

Inlet Size
1 in
Outlet Type
Threaded
Flow Rate
13 gpm
Inlet Type
Union
Overall Width
5 5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LFMMV-M1-UT
Zoro #
G6803133
UPC #
098268040111
Country of Origin
United States
Item
Thermostatic Mixing Valve
Outlet Type
Threaded
Flow Rate
13 gpm
Inlet Type
Union
Inlet Temperature (Cold)
33 Degrees to 85 Degrees F
Temp. Range
80 Degrees to 120 Degrees F
Max. Pressure
150 psi
For Use With
Domestic Hot Water Applications
Inlet Temperature (Hot)
120 Degrees to 180 Degrees F
Standards
ASSE 1017, ASSE 1069, ASSE 1070, UPC
Body Material
Copper Silicon Alloy
Includes
Check Valves, Integral Filter Washers, Solid Wax Hydraulic Principle Thermostat
Valve Type
Thermostatic
Operating Pressure - Maximum
150 psi
Inlet Connection Type - Cold
NPT
Inlet Temperature - Minimum Cold
39 Degrees F
For Media
Hot Water, Water
Inlet Temperature - Maximum Hot
180 Degrees F
Inlet Temperature - Maximum Cold
85 Degrees F
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Temperature - Minimum Hot
120 Degrees F
Operating Temperature - Maximum Outlet
120 Degrees F
Inlet Connection Type - Hot
NPT
Operating Temperature - Minimum Outlet
80 Degrees F

Description

Thermostatic Mixing Valve, Body Material Copper Silicon Alloy, Flow Rate 13 gpm, Inlet Type Union, Outlet Type Threaded, Inlet Size 1 in, Outlet Size 1 in, Temp. Range 80 Degrees to 120 Degrees F, Max. Pressure 150 psi, Overall Height 5 5/8 in, Overall Width 5 5/16 in, Inlet Temperature (Cold) 33 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Domestic Hot Water Applications
