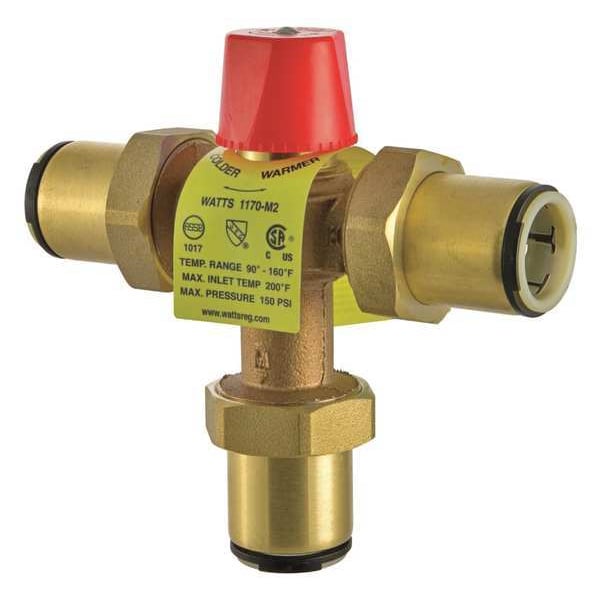

Thermostatic Mixing Valve, 3/4 in.
Mfr # LF1170-M2-QC
Zoro # G7021576
product price:Â
$
144.99
/ea
Free Shipping & Returns
Key Features
Inlet Size
3/4 in
Outlet Type
Quick Connect
Flow Rate
23 gpm
Inlet Type
Quick Connect
Max. Pressure
150 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- LF1170-M2-QC
- Zoro #
- G7021576
- UPC #
- 098268040180
- Country of Origin
- United States
- Item
- Thermostatic Mixing Valve
- Outlet Type
- Quick Connect
- Flow Rate
- 23 gpm
- Inlet Type
- Quick Connect
- Max. Pressure
- 150 psi
- Inlet Temperature (Cold)
- 40 Degrees to 85 Degrees F
- Inlet Temperature (Hot)
- 120 Degrees to 200 Degrees F
- Standards
- ASSE 1017, B125, CSA, IAMPO, UPC
- Temp. Range
- 90 Degrees to 160 Degrees F
- For Use With
- Domestic Hot Water Applications
- Body Material
- Brass
- Includes
- Check Valves, Integral Filter Washers, Locking Mechanism, Solid Wax Hydraulic Principle Thermostat
- Valve Type
- Thermostatic
- Inlet Temperature - Maximum Cold
- 85 Degrees F
- Operating Temperature - Maximum Outlet
- 160 Degrees F
- Inlet Temperature - Minimum Hot
- 120 Degrees F
- For Media
- Hot Water, Water
- Inlet Temperature - Minimum Cold
- 40 Degrees F
- Outlet Connection Type
- Quick Connect
- Inlet Temperature - Maximum Hot
- 200 Degrees F
- Operating Pressure - Maximum
- 150 psi
- Operating Temperature - Minimum Outlet
- 90 Degrees F
- Includes Temperature Gauge
- Temperature Gauge Not Included
Description
Thermostatic Mixing Valve, Body Material Brass, Flow Rate 23 gpm, Inlet Type Quick Connect, Outlet Type Quick Connect, Inlet Size 3/4 in, Outlet Size 3/4 in, Temp. Range 90 Degrees to 160 Degrees F, Max. Pressure 150 psi, Overall Height 6 7/16 in, Overall Width 6 15/16 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 120 Degrees to 200 Degrees F, For Use With Domestic Hot Water Applications
