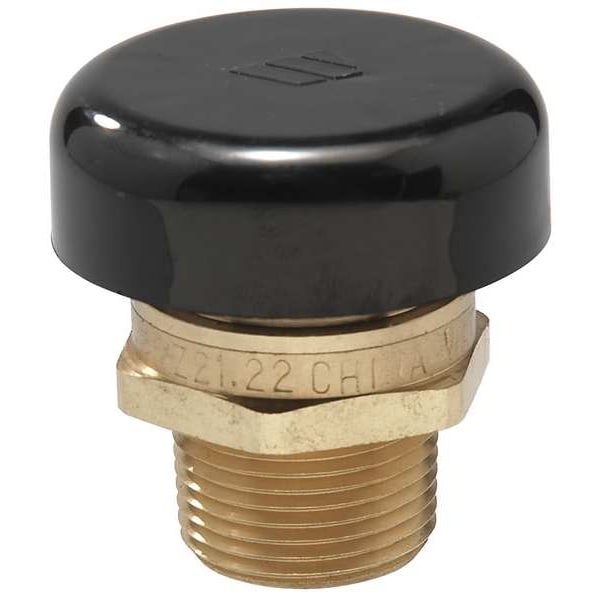

Vacuum Relief Valve, 1/2 In, Up to 200 psi
- Mfr # 1/2 LF N36
- Zoro # G0998471
product price:Â
$
68.49
/ea
Key Features
Inlet Size
1/2"
Outlet Size
1/2"
Body Material
Brass
Outlet Type
MNPT
Inlet Type
MNPT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1/2 LF N36
- Zoro #
- G0998471
- UPC #
- 098268524550
- Country of Origin
- China
- Body Material
- Brass
- Item
- Vacuum Relief Valve
- Outlet Type
- MNPT
- Inlet Type
- MNPT
- Disc Material
- Silicone
- Spring Material
- 302 Stainless Steel
- Application
- Water Heaters/Tanks
- Standards
- ANSI Z21.22, CSA
- Factory Set Pressure
- 200 psi
- Temp. Range
- 0 Degrees to 250 Degrees F
- Test Lever
- Test Lever Not Included
- Pressure Range
- Up to 15 psi Steam/Up to 200 psi Water
- Product Type
- Vacuum Relief Valve
- Operating Pressure - Maximum
- 200 psi
- Outlet Connection Gender
- Male
- Outlet Connection Type
- NPT
- For Media
- Water
- Operating Temperature - Maximum
- 250 Degrees F
- Inlet Connection Gender
- Male
- Inlet Connection Type
- NPT
- Operating Temperature - Minimum
- 0 Degrees F
Dimensions
- Inlet Size
- 1/2"
- Outlet Size
- 1/2"
- Overall Length
- 2 in
- Overall Height
- 2 in
- Outlet Connection Size
- 1/2 in
- Inlet Connection Size
- 1/2 in
- Wire Rope Length
- 2 in
- Length
- 2 in
Description
Vacuum Relief Valve, Body Material Brass, Inlet Type MNPT, Outlet Type MNPT, Inlet Size 1/2 in, Outlet Size 1/2 in, Factory Set Pressure Not Applicable, Pressure Range Up to 15 psi Steam/Up to 200 psi Water, Not Applicable BtuH, Disc Material Silicone, Overall Height 2 in, Application Water Heaters/Tanks, Overall Length 2 in, Spring Material 302 Stainless Steel, Temp. Range 0 Degrees to 250 Degrees F, Test Lever Test Lever Not Included, Standards ANSI Z21.22, CSA
