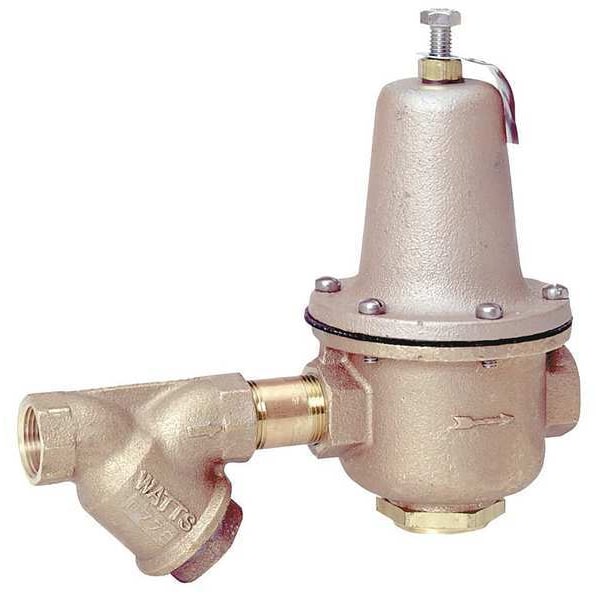

Water Pressure Regulator Valve, 1-1/4 In.
Mfr # 1 1/4 LF223-S
Zoro # G4565303
product price:Â
$
1,713.99
/ea
Free Shipping & Returns
Key Features
Series
LF223S
Body Material
Brass
Inlet Size
1 1/4 in
Outlet Size
1 1/4 in
Length
11 15/16 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1 1/4 LF223-S
- Zoro #
- G4565303
- UPC #
- 098268816372
- Country of Origin
- United States
- Item
- Water Pressure Regulator
- Series
- LF223S
- Body Material
- Brass
- Connection Type
- FNPT x FNPT
- Application
- Commercial Use, Industrial Use
- Max. Temp.
- 160 Degrees F
- Standards
- IAPMO
- Pressure Adjustment Range
- 25 to 75 psi
- Max. Pressure
- 300 psi
- Includes
- Sealed Spring Cage, Strainer
- Valve Type
- High Capacity
- Outlet Connection Gender
- Female
- Operating Temperature - Maximum
- 160 Degrees F
- Inlet Connection Gender
- Female
- NSF Certifications for Food and Drinking Water
- NSF 61
- For Media
- Water
- Operating Temperature - Minimum
- 33 Degrees F
- Outlet Connection Type
- NPT
- Pilot Adjustment - Maximum
- 75 psi
- Pilot Adjustment - Minimum
- 25 psi
- Inlet Connection Type
- NPT
- Operating Pressure - Maximum
- 300 psi
Description
Water Pressure Regulator, Series LF223S, Body Material Brass, Inlet Size 1 1/4 in, Outlet Size 1 1/4 in, Length 11 15/16 in, Height 9 1/2 in, Application Commercial Use, Industrial Use, Connection Type FIP, Pressure Adjustment Range 25 to 75 psi, Gauge Port Size Not Applicable, Seal Material Not Applicable, Max. Temp. 160 Degrees F, Pipe Size 1 1/4 in, Max. Pressure 300 psi, Standards IAPMO, Includes Sealed Spring Cage, Strainer
