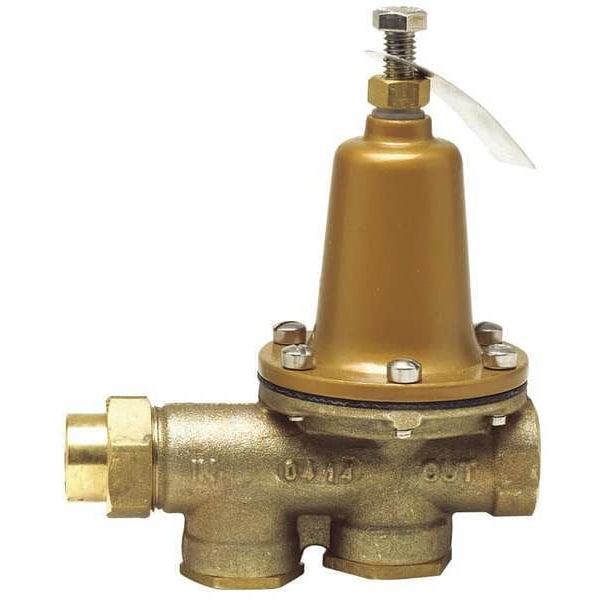

Water Pressure Regulator Valve, 1/2 In.
Mfr # 1/2 LF25AUB-HP-Z3
Zoro # G4540417
product price:Â
$
231.99
/ea
Free Shipping & Returns
Key Features
Series
LF25AUB-Z3
Body Material
Brass
Inlet Size
1/2 in
Outlet Size
1/2 in
Length
6 3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1/2 LF25AUB-HP-Z3
- Zoro #
- G4540417
- UPC #
- 098268817133
- Country of Origin
- China
- Item
- Water Pressure Regulator
- Series
- LF25AUB-Z3
- Body Material
- Brass
- Pressure Adjustment Range
- 75 to 125 psi
- Connection Type
- FNPT Union x FNPT
- Max. Pressure
- 300 psi
- Max. Temp.
- 160 Degrees F
- Standards
- ANSI A112.26.2, ASSE 1003, CSA B356, MIL-V-18146B Type 1, UPC
- Application
- Commercial Use, Residential Use
- Valve Type
- High Capacity
- For Media
- Water
- Inlet Connection Type
- FIP
- Outlet Connection Type
- FIP
- Operating Temperature - Maximum
- 180 Degrees F
- Pilot Adjustment - Maximum
- 125 psi
- Operating Temperature - Minimum
- 33 Degrees F
- Pilot Adjustment - Minimum
- 75 psi
- Operating Pressure - Maximum
- 300 psi
Description
Water Pressure Regulator, Series LF25AUB-Z3, Body Material Brass, Inlet Size 1/2 in, Outlet Size 1/2 in, Length 6 3/8 in, Height 7 in, Application Commercial Use, Residential Use, Connection Type FIP, Pressure Adjustment Range 75 to 125 psi, Gauge Port Size Not Applicable, Seal Material Not Applicable, Max. Temp. 160 Degrees F, Pipe Size 1/2 in, Max. Pressure 300 psi, Standards ANSI A112.26.2, ASSE 1003, CSA B356, MIL-V-18146B Type 1, UPC
