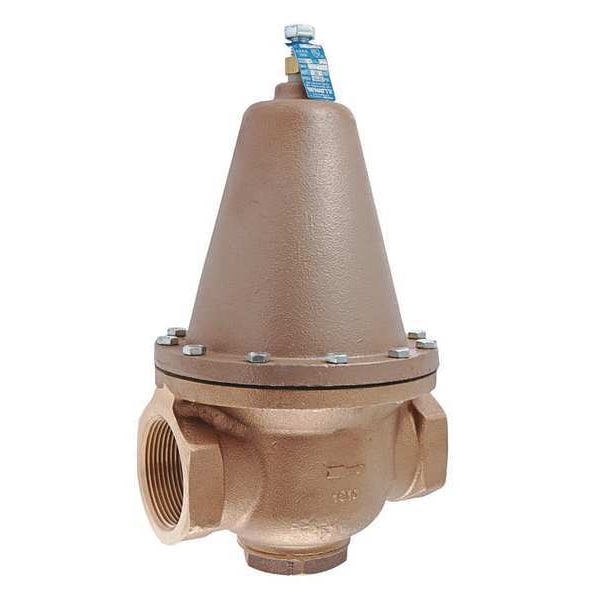

Water Pressure Regulator Valve, 2-1/2 In.
Mfr # 2 1/2 LFN223M2-B
Zoro # G4630832
product price:Â
$
7,035.58
/ea
Free Shipping & Returns
Key Features
Series
LFN223B
Body Material
Brass
Inlet Size
2 1/2 in
Outlet Size
2 1/2 in
Length
7 7/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2 1/2 LFN223M2-B
- Zoro #
- G4630832
- UPC #
- 098268816730
- Country of Origin
- United States
- Item
- Water Pressure Regulator
- Series
- LFN223B
- Body Material
- Brass
- Max. Temp.
- 160 Degrees F
- Pressure Adjustment Range
- 25 to 75 psi
- Connection Type
- FNPT x FNPT
- Application
- Commercial Use, Industrial Use
- Max. Pressure
- 300 psi
- Standards
- ASSE, ASSE 1003, UPC
- Includes
- Sealed Spring Cage
- Valve Type
- High Capacity
- Pilot Adjustment - Maximum
- 75 psi
- Operating Temperature - Minimum
- 33 Degrees F
- Operating Pressure - Maximum
- 300 psi
- Operating Temperature - Maximum
- 160 Degrees F
- Outlet Connection Gender
- Female
- Outlet Connection Type
- NPT
- NSF Certifications for Food and Drinking Water
- NSF 61, NSF 61G
- Pilot Adjustment - Minimum
- 25 psi
- Inlet Connection Gender
- Female
- Inlet Connection Type
- NPT
- For Media
- Water
Description
Water Pressure Regulator, Series LFN223B, Body Material Brass, Inlet Size 2 1/2 in, Outlet Size 2 1/2 in, Length 7 7/8 in, Height 13 5/8 in, Application Commercial Use, Industrial Use, Connection Type FIP, Pressure Adjustment Range 25 to 75 psi, Gauge Port Size Not Applicable, Seal Material Not Applicable, Max. Temp. 160 Degrees F, Pipe Size 2 1/2 in, Max. Pressure 300 psi, Standards ASSE, ASSE 1003, UPC, Includes Sealed Spring Cage
