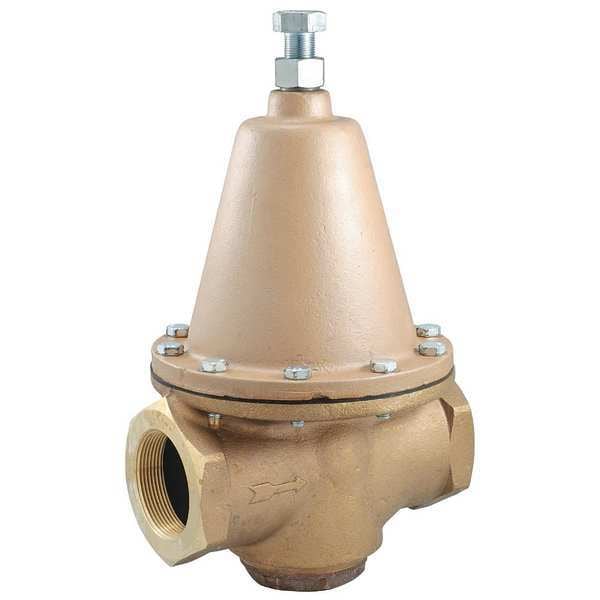

Water Pressure Regulator Valve, 3 In.
Mfr # 3 LFN223M1-B
Zoro # G4628714
product price:Â
$
8,177.62
/ea
Free Shipping & Returns
Key Features
Series
LFN223B
Body Material
Brass
Inlet Size
3 in
Outlet Size
3 in
Length
10 1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3 LFN223M1-B
- Zoro #
- G4628714
- UPC #
- 098268816846
- Country of Origin
- United States
- Item
- Water Pressure Regulator
- Series
- LFN223B
- Body Material
- Brass
- Connection Type
- FNPT x FNPT
- Max. Pressure
- 300 psi
- Pressure Adjustment Range
- 25 to 75 psi
- Max. Temp.
- 160 Degrees F
- Standards
- ASSE, ASSE 1003, UPC
- Application
- Commercial Use, Industrial Use
- Includes
- Sealed Spring Cage
- Valve Type
- High Capacity
- Operating Pressure - Maximum
- 300 psi
- Operating Temperature - Maximum
- 160 Degrees F
- Outlet Connection Type
- NPT
- Outlet Connection Gender
- Female
- NSF Certifications for Food and Drinking Water
- NSF 61, NSF 61G
- Inlet Connection Type
- NPT
- Pilot Adjustment - Maximum
- 75 psi
- Operating Temperature - Minimum
- 33 Degrees F
- For Media
- Water
- Pilot Adjustment - Minimum
- 25 psi
- Inlet Connection Gender
- Female
Description
Water Pressure Regulator, Series LFN223B, Body Material Brass, Inlet Size 3 in, Outlet Size 3 in, Length 10 1/2 in, Height 16 7/8 in, Application Commercial Use, Industrial Use, Connection Type FIP, Pressure Adjustment Range 25 to 75 psi, Gauge Port Size Not Applicable, Seal Material Not Applicable, Max. Temp. 160 Degrees F, Pipe Size 3 in, Max. Pressure 300 psi, Standards ASSE, ASSE 1003, UPC, Includes Sealed Spring Cage
