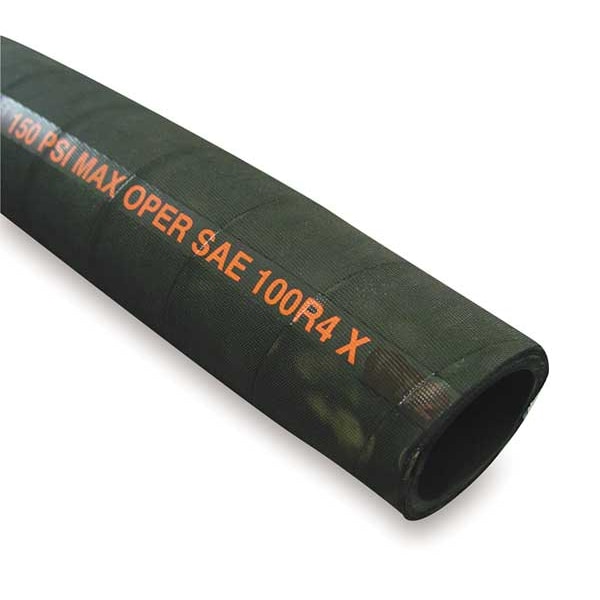

Weatherhead Hose 1-1/4In Hose For Return Hose H03920 - main

Hose 1-1/4In Hose For Return Hose

  • Mfr # H03920

  • Zoro # G3204120

product price: $1,132.99
/ea
Free Shipping & Returns

Key Features

Max. Working Pressure @ 70 F
200 psi
Hose Inside Dia.
1 1/4 in
Hose Length
50 ft
Hose Color
Black
Temp. Range
-40 Degrees to 275 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H03920
Zoro #
G3204120
UPC #
-
Country of Origin
Mexico

Dimensions

Hose Inside Dia.
1 1/4 in
Hose Length
50 ft
Hose Outside Dia. (In.)
1-53/64
Min. Bend Radius (In.)
5
Dash Size
-20
Hose Inside Dia. (In.)
1-1/4
Hose Length (Ft.)
50
Hose Outside Dia.
1 53/64 in

Details

Max. Working Pressure @ 70 F
200 psi
Hose Color
Black
Temp. Range
-40 Degrees to 275 Degrees F
Standards
SAE 100R4
Hose Cover Material
Neoprene
Hose Tube Material
Synthetic Rubber
Cover Material
Neoprene
Reinforcement
Helical Wire, (2) Textile Braid
Operating Pressure (PSI)
200
Tube Material
CPE
Type
Crimped
Vacuum Rating (Inches Hg)
25
Temp. Range (F)
-40 Degrees to 212 Degrees
Item
Hydraulic Hose
Safety Factor
4:1
Application
In Plant Hydraulics, Construction, Off Road Equipment, Agricultural Equipment
Color
Black
Hose Reinforcement Material
Fiber
Hose Configuration
Bulk Hose
Series
H039
For Media Type
Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water
Compatible Chemicals
Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water

Description

Hydraulic Hose, Hose Inside Dia. 1 1/4 in, Hose Outside Dia. 1 53/64 in, Hose Length 50 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Neoprene, Hose Reinforcement Type Braid, Hose Reinforcement Material Fiber, Hose Color Black, Series H039, Max. Working Pressure @ 70 F 200 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 275 Degrees F, Standards SAE 100R4, Hose Configuration Bulk Hose
