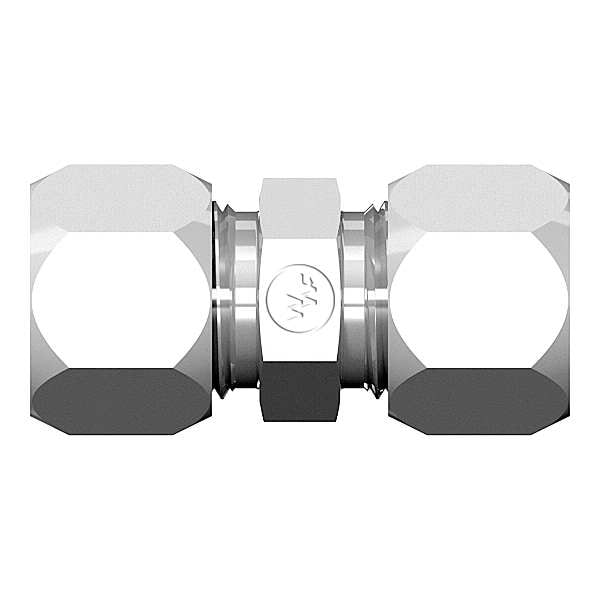

Strt, Steel, Comp. 1/4 in,
- Mfr # 7305X04X04
- Zoro # G903575770
product price:Â
$
4.85
/ea
Key Features
Specific Fitting Shape
Straight Connector
Standards
ASME, ISO, MS, NAHAD, NFPA, SAE J514
Hex Size
1/2 in
Finish
Zinc Trivalent
Finish/Coating
Zinc Trivalent
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 7305X04X04
- Zoro #
- G903575770
- UPC #
- -
- Country of Origin
- China
- Item
- Compression Fitting Union
- Specific Fitting Shape
- Straight Connector
- Standards
- ASME, ISO, MS, NAHAD, NFPA, SAE J514
- Finish
- Zinc Trivalent
- Finish/Coating
- Zinc Trivalent
- Compatible Fitting Brands
- Air-Way, Parker
- Maximum Operating Temperature
- 450 Degrees F
- Series
- Ermeto Flareless
- System of Measurement
- Imperial
- Minimum Operating Temperature
- -30 Degrees F
- Fitting Side A Connection Type
- Compression
- Maximum Operating Pressure
- 5,250 psi
- Fitting Material
- Steel
- Application
- Hydraulics
- Color
- Clear
- Fitting Shape
- Straight
- For Media Type
- Air, Fuels, Oils
- Operating Temperature - Minimum
- -30 Degrees F
- Connector Type
- Adapter
- Operating Pressure - Maximum
- 5,250 psi
- Fitting Side 1 Connection Type
- Compression
- Operating Temperature - Maximum
- 450 Degrees F
- Material Grade
- 1045, 12L14
Description
Compression Fitting Union, Application Hydraulics, Fitting Side A Connection Type Compression, Finish/Coating Zinc Trivalent, Fitting Material Steel, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Material Grade 1045, 12L14, Maximum Operating Pressure 5,250 psi, Maximum Operating Temperature 450 Degrees F, Overall Length 1 3/16 in, Specific Fitting Shape Straight Connector, Compatible Fitting Brands Air-Way, Parker, Thread Size A 7/16-20
