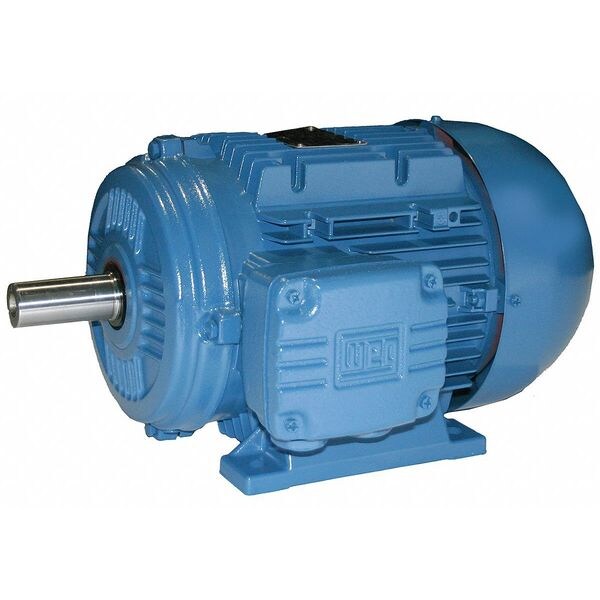

3-Phase Metric Motor, 1 HP, 90S/L Frame, 460 Voltage, 1155 Nameplate RPM (Discontinued)
- Mfr # .7512ET3WAL90S
- Zoro # G6720043
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
.7512ET3WAL90S
Zoro #
G6720043
UPC #
-
Country of Origin
Multiple
Dimensions
Shaft Length
50mm
Shaft Dia.
24mm
Description
Metric Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1 HP, 0.75 kW, Nameplate RPM 1155, Frame 90S/L, Voltage 460, 60/50 Hz, 3 Phase, Full Load Amps 1.6, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Aluminum, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 82.5 Percent, Continuous Duty, 1101-1200, UL (E104590), CSA (LR38324), CE
