Product Information
MFR #
00136OS1BCDB56
Zoro #
G4265527
UPC #
-
Country of Origin
Multiple
Dimensions
Shaft Dia.
5/8"
Overall Length
11-1/8"
Shaft Length
1-7/8"
Description

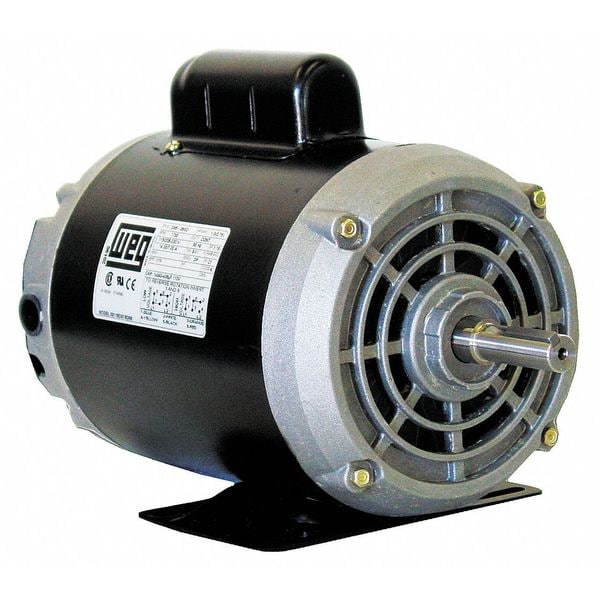

Commercial Duty Air Compressor Motor, 1 Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 3480, Voltage 115/208-230, Full Load Amps 12.2/6.1-6.1, 56 Frame, 60 Hz, Motor Service Factor 1.00, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Shaft Dia. 5/8 in, Shaft Length 1 7/8 in, Motor Shaft Design Keyed, Motor Bearings Ball, Overall Length 11 1/8 in
