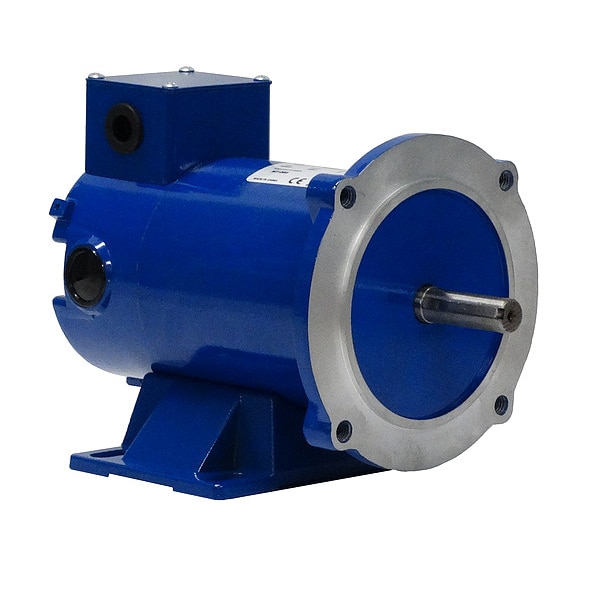

DC Permanent Magnet Motor, 1/3 HP, 27 A
Mfr # MT-067
Zoro # G412477817
product price: $511.99
/ea
Free Shipping & Returns
Key Features
HP
1/3
Voltage
12V DC
Nameplate RPM
1,750
Shaft Dia.
5/8 in
Frame
56C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MT-067
Zoro #
G412477817
UPC #
-
Country of Origin
China
Dimensions
Shaft Dia.
5/8 in
Stud Size
3/8"-16
Length Less Shaft
9 13/16 in
Overall Length
11 11/16 in
Bolt Circle Dia.
5 7/8 in
Shaft Length
1 7/8 in
Description
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet DC, 1/3 HP, Nameplate RPM 1,750, Voltage 12V DC, 27 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection Not Applicable, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball, Shaft Length 1 7/8 in
Restrictions
Hazardous material
