  11. Pump Motor, 182/4JM, 208-230/460V

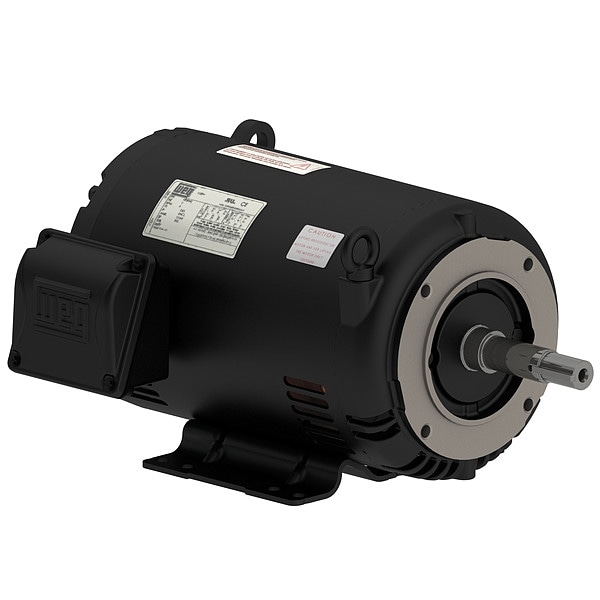

Weg Pump Motor, 182/4JM, 208-230/460V 00536OT3E182JM-S - main

Pump Motor, 182/4JM, 208-230/460V

  • Mfr # 00536OT3E182JM-S

  • Zoro # G8515263

product price: $696.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
HP
5
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
208-230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
00536OT3E182JM-S
Zoro #
G8515263
UPC #
-
Country of Origin
Multiple

Dimensions

Length Less Shaft
12 in
Shaft Length
4 1/8 in
Shaft Dia.
7/8 in
Overall Length
16 1/4 in
Body Dia.
8.5 in
Bolt Circle Dia.
5 7/8 in
Manufacturers Warranty Length
3 yr
Height
8 9/16 in

Details

Item
Close-Coupled Pump Motor
Motor Design
3-Phase
HP
5
RPM Range
3,001-3,600
Nameplate RPM
3,510
Voltage
208-230/460V AC
Frame
182/4JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Frame Material
Steel
Frame Material
Rolled steel
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Full Load Amps
12.2/6.10
CC Number
CC029A
Motor Shaft Design
JM Threaded
Standards
CSA (LR38324), CSA (LR50962), UL (E104590), UL (E125311)
Green Environmental Attribute
Does not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic and Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acrylonitrile
Motor Enclosure Design
Open Dripproof
Phase
Three
Motor Sub Application
Close-Coupled Pump
Motor Efficiency Group
NEMA Premium Efficient
Ins. Class
F
Motor Shaft Rotation
CW/CCW
Motor Application
Pump
Duty
Continuous
Hz
60 Hz
Nominal Efficiency
86.5 %
Inverter Rated
Yes
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Thermal Protection
None
Duty Cycle
Continuous
Voltage @ 50Hz
190/380, 220/415
Conduit Box Position
F1
Usable @ 208V
Yes
Weight
63 lb
Service Factor @ 50Hz
1
Conduit Box Location
Exterior
Usable @ 200V
Yes
Motor Mounting Position
Horizontal
No. of Speeds
1
HP @ 50Hz
5
NEMA Design
B
RPM @ 50Hz
2,900
Inverter Rating
1000:1
Shaft Material
Carbon Steel
Regreasable Bearings
Regreasable Bearings
Shaft Type
JM Threaded

Description

Close-Coupled Pump Motor, Body Dia. 8.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 182/4JM, Hz 60 Hz, Full Load Amps 12.2/6.10, Height 8 9/16 in, HP 5, HP @ 50Hz 5, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 12 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
