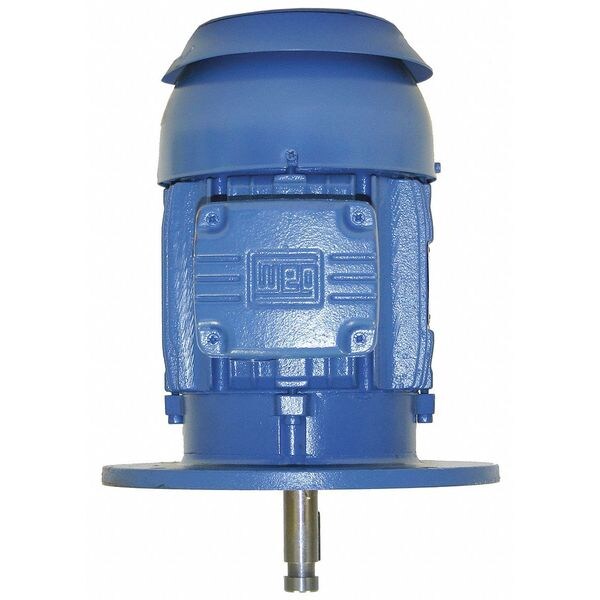

Pump Motor, 30 HP, 3520 RPM, 230/460 V

WEG| Zoro #: G1218445| Mfr #: 03036EP3E286HPH

$3173.86 /ea

This item ships free. DetailsStandard ground shipping
Details:
Finish: Blue Enamel
Full Load Amps: 74.8-67.6/33.8
HP: 30
Save 15%. Sign up for Z-mail.

Technical Specifications

Zoro #: G1218445 Mfr #: 03036EP3E286HPH
Ambient Temperature: 40 Degrees CHz: 60
Motor Shaft Rotation: CW/CCWMotor Mounting Type: Face
Motor Enclosure Design: Totally Enclosed Fan-CooledVoltage: 230/460
Motor Sub Application: Close-Coupled PumpMotor Bearings: Ball
Standards: UL, CSA, CEFrame Material: Cast Iron
Motor Service Factor: 1.25NEMA Standard: Inverter NEMA MG 1 Part 30: 100:1 Variable and 20:1 Constant Torque
Motor Mounting Position: Vertical Shaft DownItem: Vertical Pump Motor
Voltage Compatibility: 460, 230/460, 220-230/460Warranty: 1-1/2 yr.
Motor Thermal Protection: NoneIns. Class: F
Motor Design: 3-PhaseFinish: Blue Enamel
Phase: 3Motor Application: Pump
Base: P-BaseDuty: Continuous
Nameplate RPM: 3520HP: 30
Full Load Amps: 74.8-67.6/33.8Length Less Shaft: 25-1/8"
Shaft Dia.: 1-5/8"Frame: 286HPH
Shaft Length: 4-1/2"Overall Length: 29-5/8"
Nominal Efficiency: 91.0Country of Origin (subject to change): Multiple

Product Description

Vertical Pump Motor, 3-Phase, Totally Enclosed Fan-Cooled, 30 HP, 3520 Nameplate RPM, 286HPH Frame, CW/CCW Motor Shaft Rotation, Voltage 230/460, Full Load Amps 74.8-67.6/33.8, Phase 3, 60 Hz, Face Motor Mounting Type, Vertical Shaft Down Motor Mounting Position, Ball Motor Bearings, Frame Material Cast Iron, Blue Enamel Finish, P-Base Base, Motor Thermal Protection None, Motor Service Factor 1.25, Ambient Temperature 40 Degrees C, Shaft Dia. 1-5/8 In., Shaft Length 4-1/2 In.
